Name: 4-Camera 360° Surround View System
Brand: Fleetshop
Price: 550.00 AUD
Availability: InStock

DESCRIPTION

Experience next-level vehicle safety and situational awareness with the Mingshang MS-620A 360° Surround View System, the ultimate driving assistance upgrade for cars, vans, trucks, and fleet vehicles.

This all-in-one kit includes four ultra-wide cameras that capture every angle around your vehicle and a powerful image processor that digitally stitches them into a seamless real-time bird’s-eye view. The system eliminates blind spots, making parking, reversing, and tight-space maneuvers effortless and safe.

The 10.1″ HD Android touchscreen serves as your central command display, providing crystal-clear visuals, easy navigation, and access to smart features. Built-in AI technology detects pedestrians, vehicles, and obstacles, issuing visual and audible alerts to help prevent collisions before they occur.

Perfect for both personal and commercial use, the Mingshang MS-620A enhances visibility, reduces accidents, and adds professional-grade security to your vehicle.

KEY FEATURES

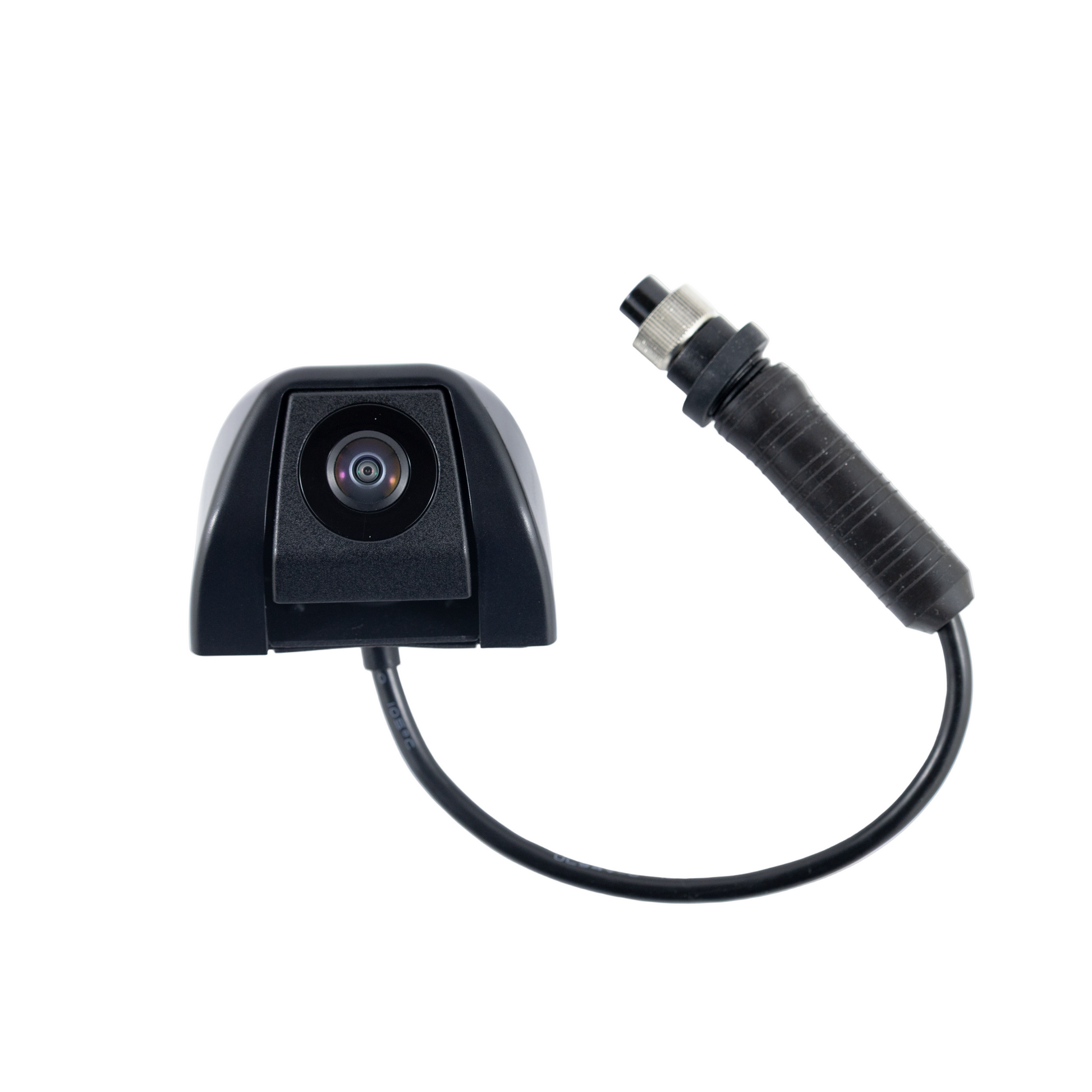

Seamless 360° Bird's-Eye View: Four 210° fish-eye cameras create a flawless, top-down panoramic view of the vehicle and its immediate surroundings.

Integrated 10.1" HD Touchscreen: A large, high-resolution (1280x800) IPS display provides crystal-clear viewing and intuitive touch control over all functions.

AI-Powered Pedestrian & Vehicle Detection: Built-in artificial intelligence actively identifies potential hazards and alerts the driver, significantly enhancing safety.

Built-in 4-Channel DVR: Records video from all four cameras simultaneously onto a TF card (up to 512GB) or USB storage device.

Fast & Simple Calibration: Utilises an innovative one-minute auto-calibration process, with support for remote calibration, making setup quick and easy.

Android Operating System: A powerful quad-core processor running Android 8.1 ensures a fast, reliable, and user-friendly experience.

Integrated GPS & 4G Connectivity: Allows for real-time tracking, remote viewing, and easy integration with fleet management platforms (SIM card required).

USE CASE

This system is designed for any large vehicle where complete situational awareness is critical for safety and efficiency.

Tight-Quarters Manoeuvring: Navigating trucks and buses through crowded city centres, depots, or construction sites without needing a spotter.
Mining & Construction Site Safety: Provides operators of large machinery (excavators, loaders) with a complete view of ground crew and site obstacles.
Specialised Vehicle Operations: Ideal for street sweepers, garbage trucks, and emergency vehicles that operate in close proximity to the public.
Fleet Safety & Monitoring: The built-in DVR and 4G connectivity allow fleet managers to remotely monitor vehicle surroundings and review incidents.
Preventing Low-Speed Collisions: Eliminates blind spots during parking, docking, and other low-speed manoeuvres where scrapes and impacts are common.

SPECIFICATIONS

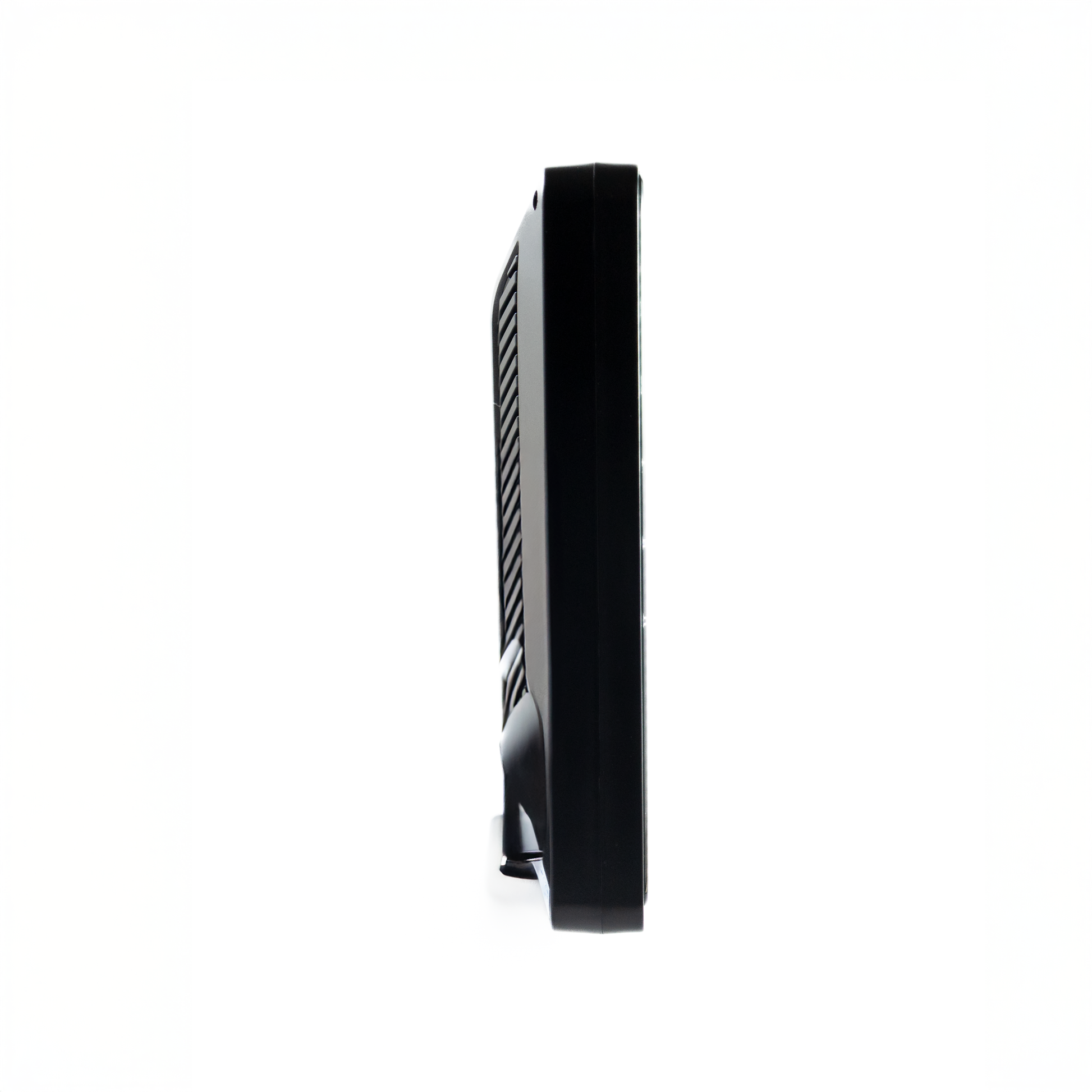

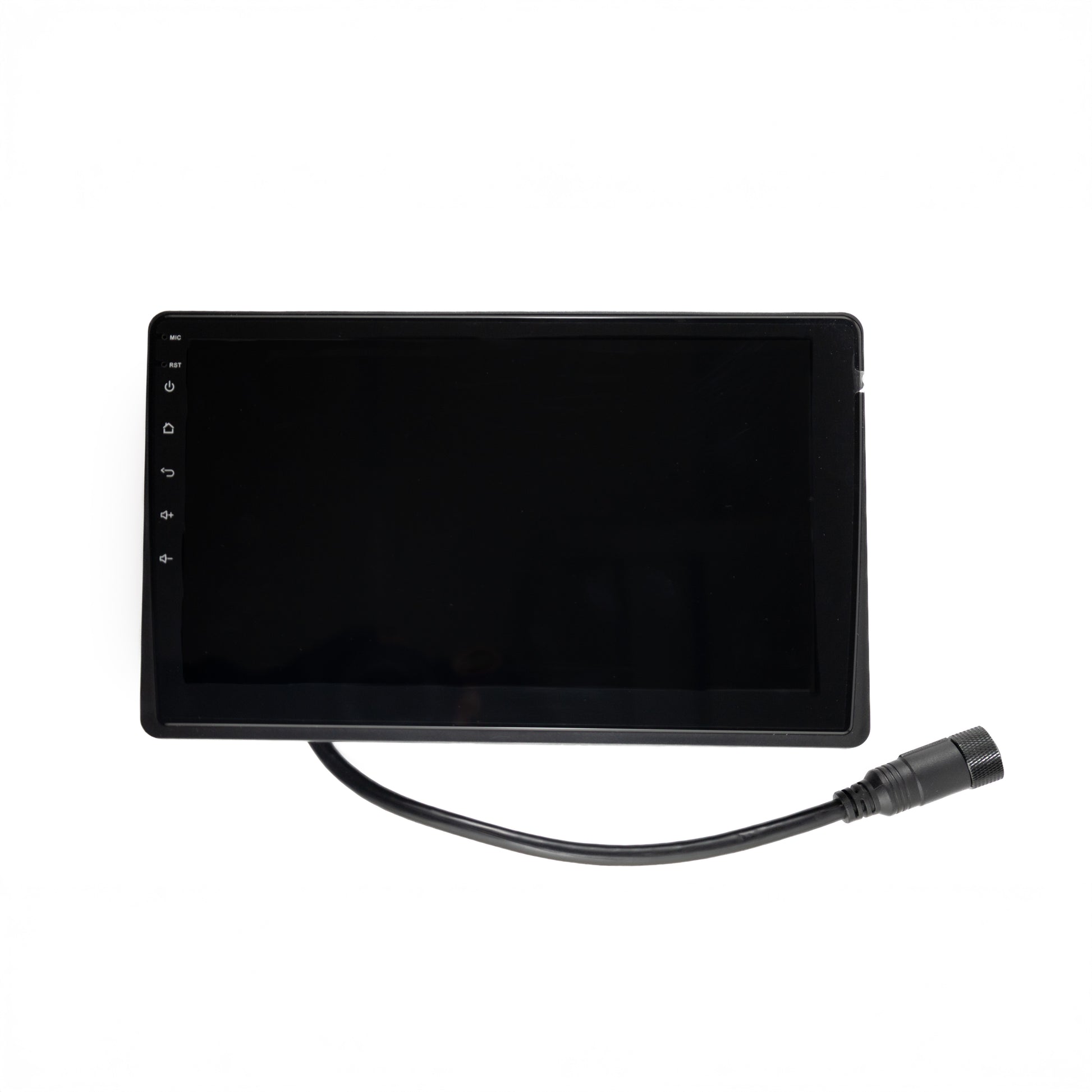

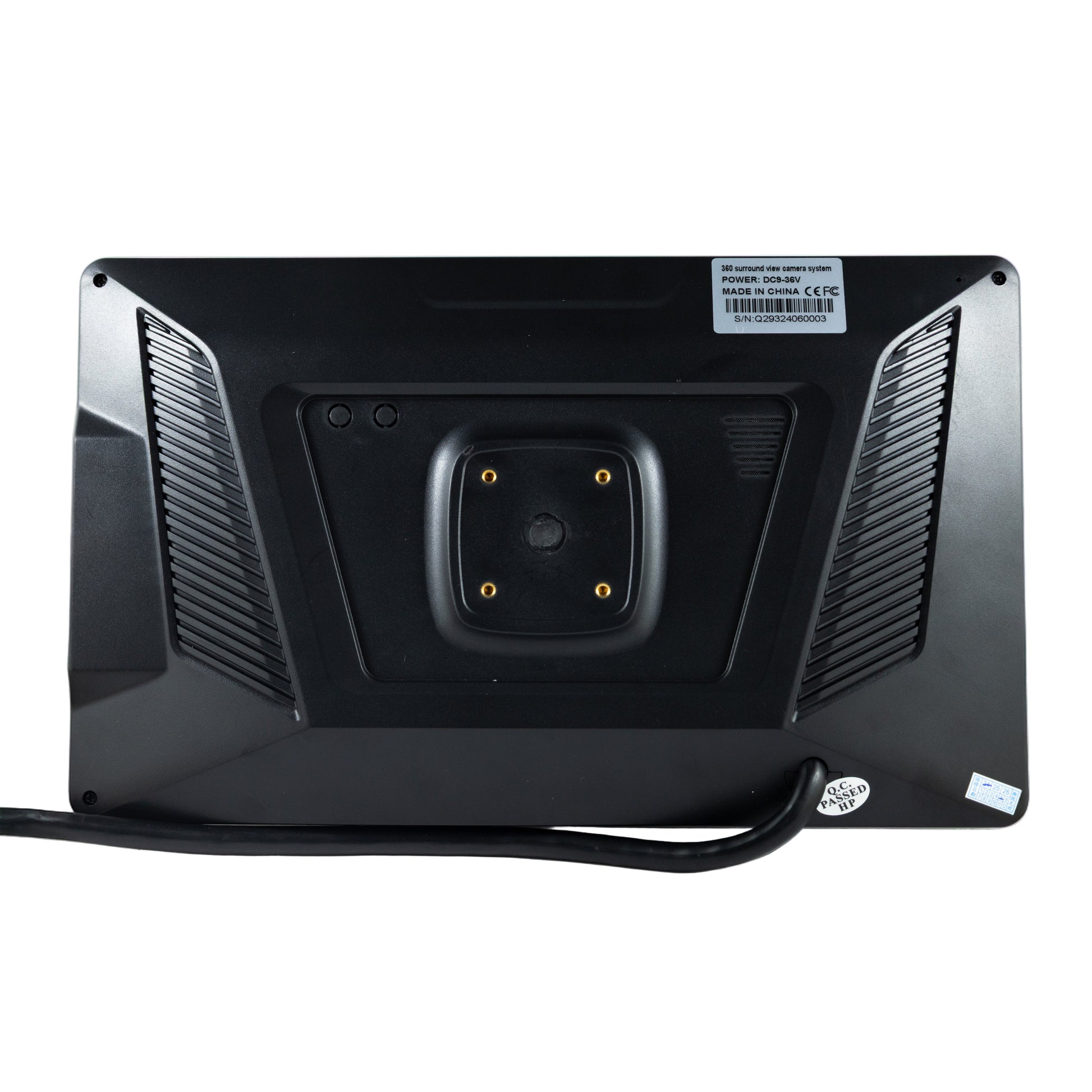

All-in-One Monitor/ECU (MS-620A)

Display: 10.1" IPS Touchscreen
Resolution: 1280 x 800
Operating System: Android 8.1
Processor: Quad-core ARM Cortex-A53
Storage: 32GB Flash (Internal), supports TF card up to 512GB & USB SSD
Network: Built-in 4G, Wi-Fi, and GPS
Display Modes: 2D / 3D Switchable
Power Input: DC 9V - 36V
Operating Temperature: -20°C to +70°C

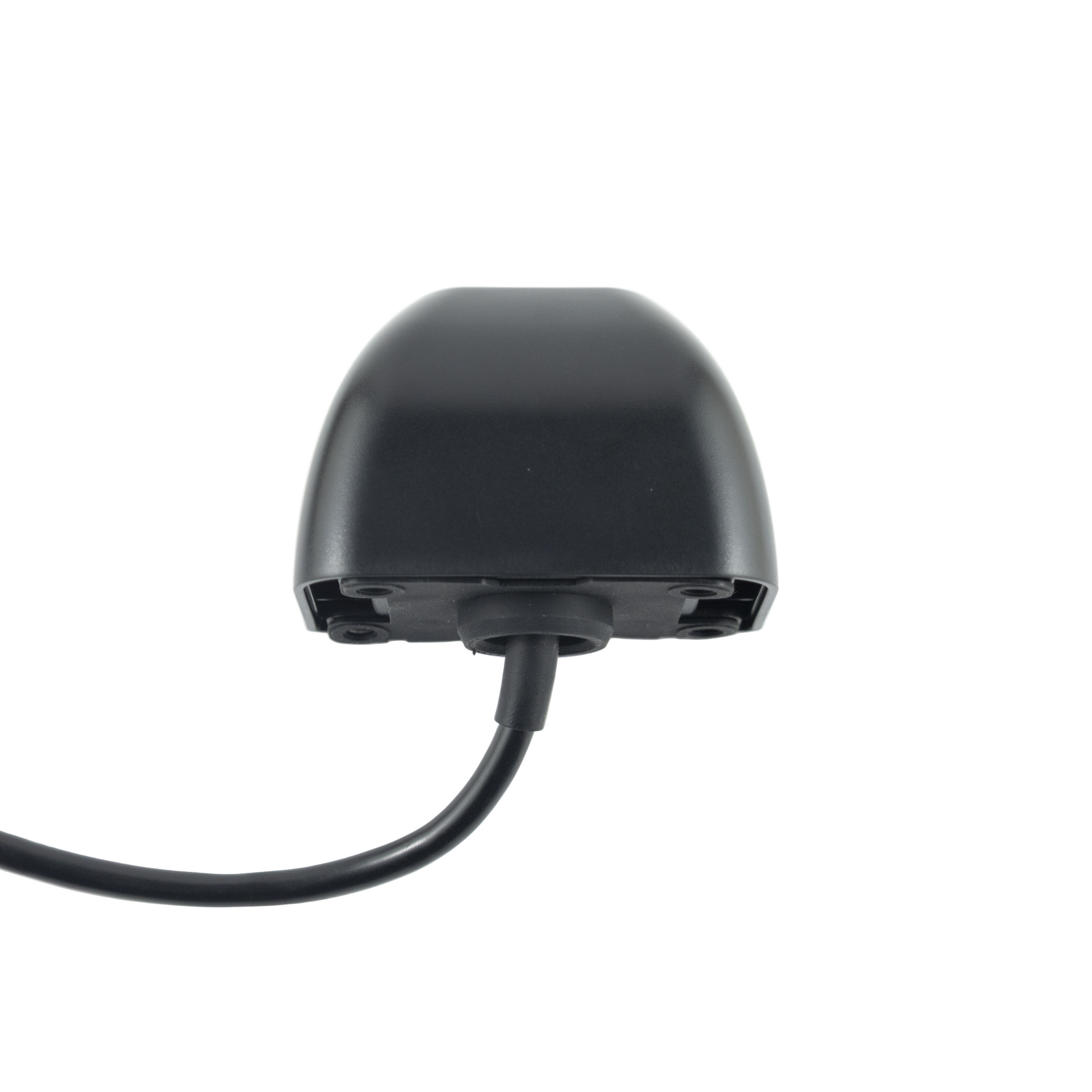

Cameras

Quantity: 4
Lens: 210° Ultra-wide-angle fish-eye
Waterproof Rating: IP69K (Expected standard for this application)

ADDITIONAL INFO

All-in-One Design: The processing unit, DVR, and monitor are all integrated into one housing, simplifying installation and reducing cab clutter.

Automatic Triggers: The view can be set to automatically switch to the relevant camera (left, right, or rear) when turn signals or reverse gear are engaged.

Expandability: The system can support optional add-ons like parking sensors (up to 12) for an even greater level of safety.
