7-Inch AHD 4-Channel Digital Wireless DVR Camera System
7-Inch AHD 4-Channel Digital Wireless DVR Camera System
Couldn't load pickup availability
DESCRIPTION
DESCRIPTION

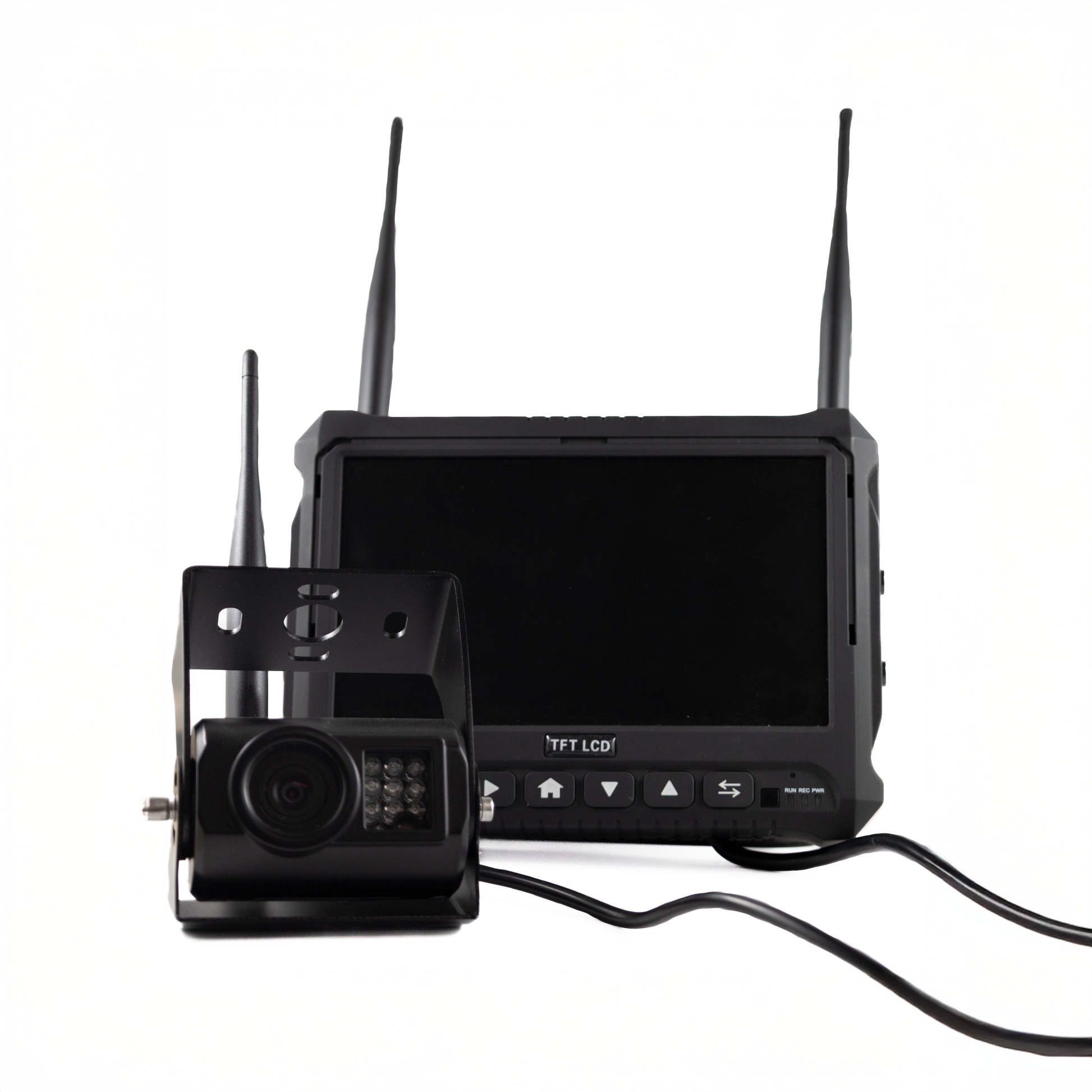

Upgrade your vehicle’s safety and monitoring with the MS-715 7″ AHD 4-Channel Digital Wireless DVR Camera System, a complete rearview and recording solution built for trucks, RVs, buses, trailers, and agricultural machinery. This professional system combines clear HD visuals, secure wireless transmission, and robust recording capabilities to give drivers total visibility in all conditions.
The 7-inch AHD monitor features a 1024x600 high-definition display, delivering crisp, real-time video from up to four cameras simultaneously. Advanced digital wireless technology ensures a stable, interference-free connection for distances up to 150 meters, making it ideal for large or extended vehicles.
With a built-in 4-channel DVR, the system records footage from all connected cameras onto a single SD card (not included), providing vital evidence for security, safety, and incident review. The heavy-duty IP69K waterproof camera is engineered to withstand dirt, rain, and pressure washing, while the integrated microphone captures surrounding audio for enhanced situational awareness.
Designed for reliability and ease of use, the MS-715 offers complete visibility and peace of mind—performing flawlessly day or night, in any weather or terrain.
KEY FEATURES
KEY FEATURES
Crystal Clear AHD Video: Analog High Definition (AHD) technology provides significantly sharper and more detailed images than standard systems.
High-Resolution 7-Inch Monitor: The large 1024x600 pixel display offers a vibrant and detailed view. Supports single, dual, and quad-view split-screen modes to see multiple camera angles at once.
Long-Range Digital Wireless: Stable and interference-free signal with a transmitting distance of up to 150 meters (approx. 490 ft) in open areas.
4-Channel DVR Recording: Simultaneously record video from up to four cameras. Features loop recording to continuously overwrite the oldest files. (Requires MicroSD/SD card, not included).
Extreme Weatherproof Camera (IP69K): The highest IP rating ensures the camera is protected against high-pressure water jets, steam, and total dust ingress.
Audio Recording: The camera is equipped with a high-sensitivity microphone to capture ambient sound.
Excellent Night Vision: Powerful infrared LEDs provide a clear view up to 10 meters in complete darkness.
Wide Voltage Compatibility: The entire system runs on DC 10V-36V, making it suitable for everything from cars and vans to heavy-duty trucks and farm equipment.
Flexible Viewing Options: Easily mirror or flip the camera image (horizontal/vertical) to suit any mounting position (rear view, front view, etc.).
USE CASE
USE CASE
- Trucks & Transport
- Caravans & RVs
- Agriculture
- Construction & Mining
- Specialty Trailers
- Council & Utility Vehicles
SPECIFICATIONS
SPECIFICATIONS

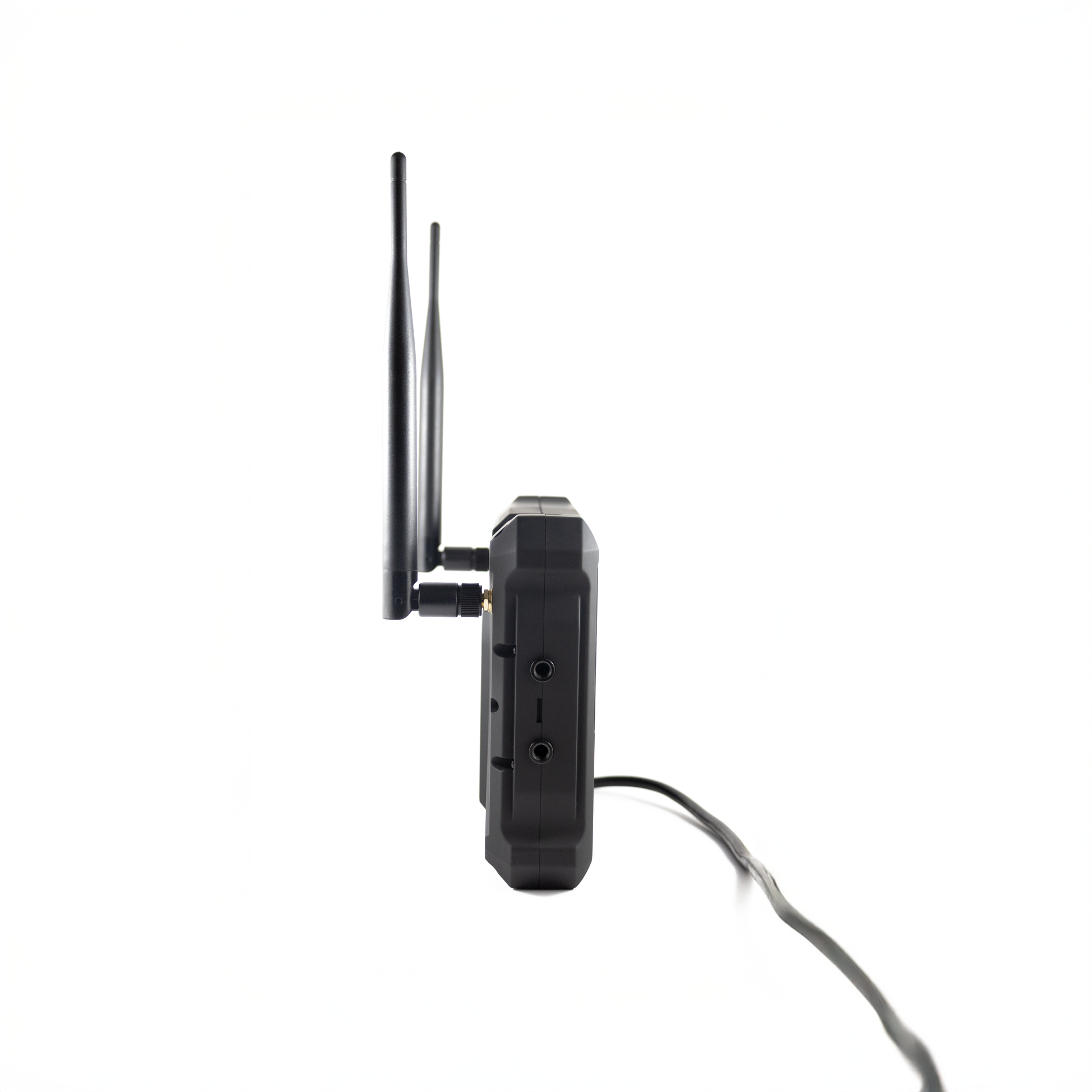

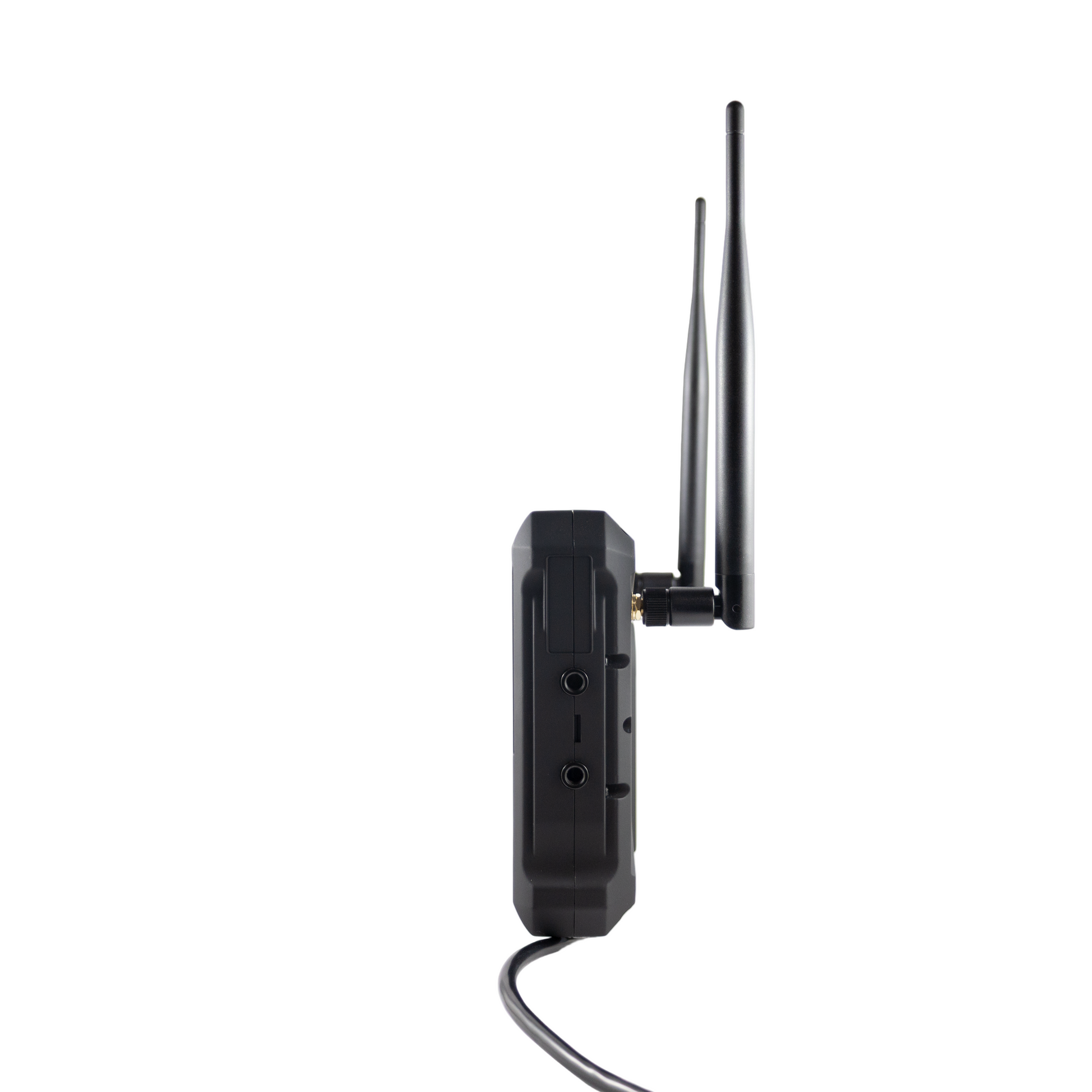

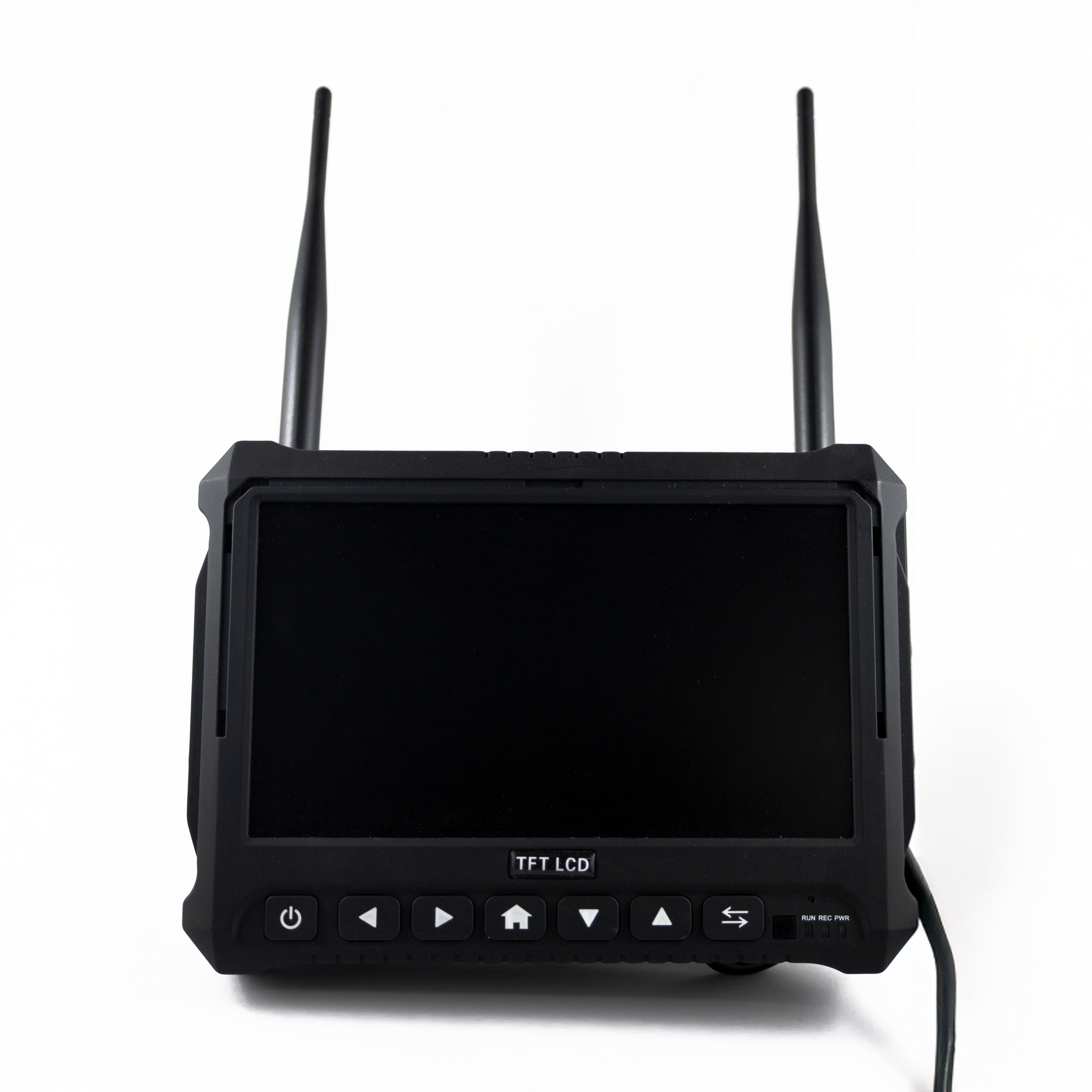

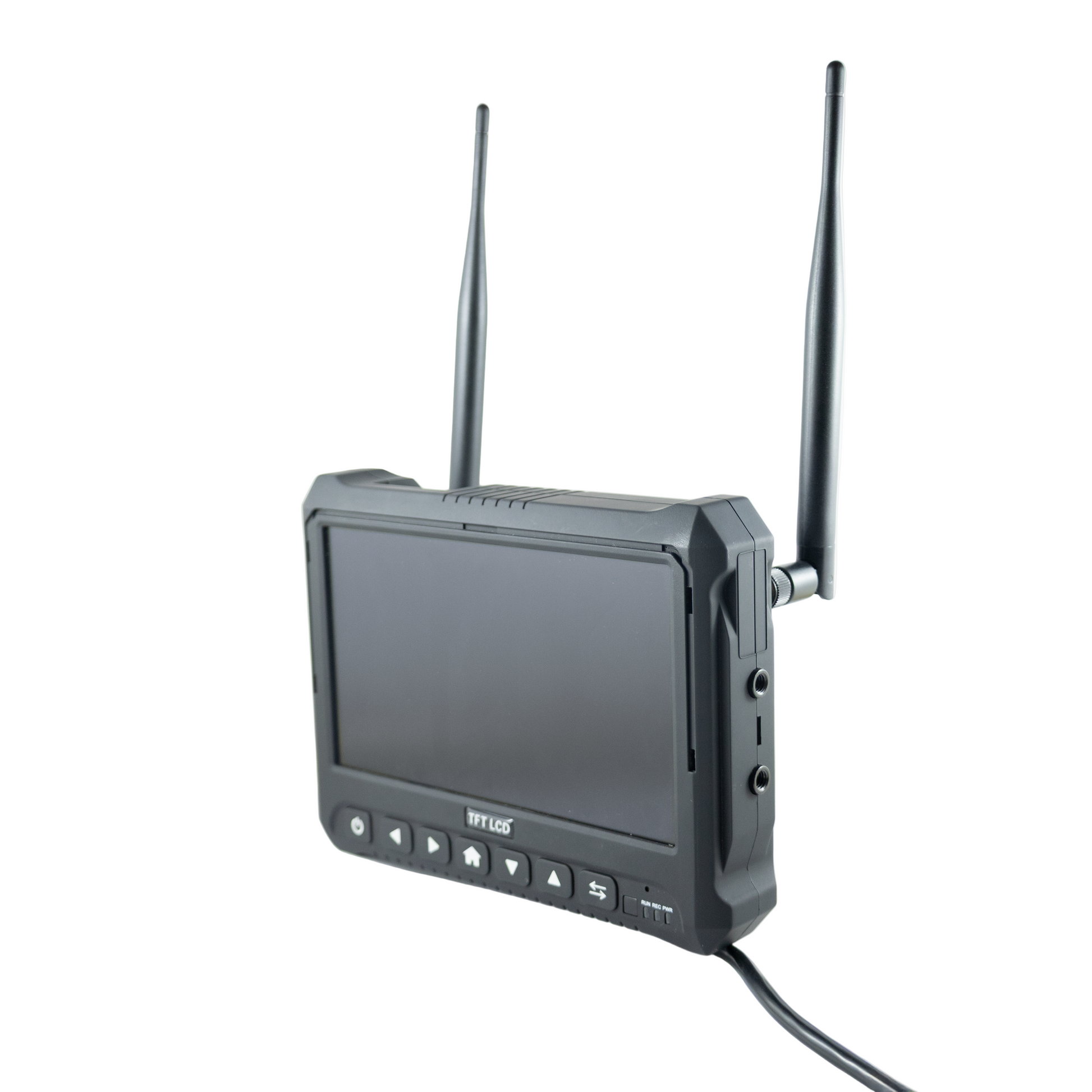

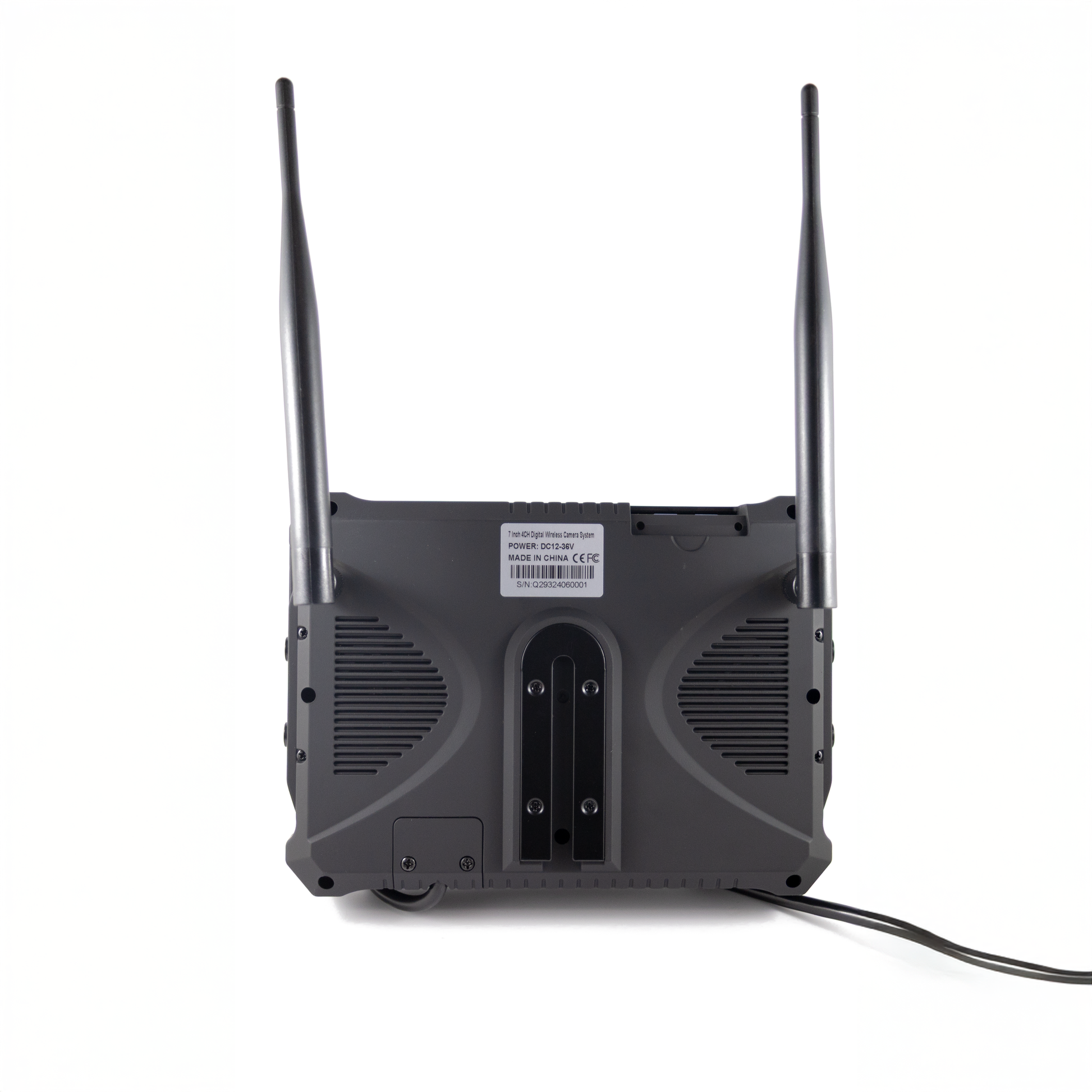

Monitor (Model: MS-715)
- Panel: 7" Digital Panel
- Screen Ratio: 16:9
- Resolution: 1024 x 600
- Luminance: 350 cd/m²
- Contrast Ratio: 1000:1
- Wireless Range: 150 Meters (Open Area)
- Power Supply: DC 10V - 36V
- Power Consumption: <5W
- Operating Temperature: -20°C to 60°C

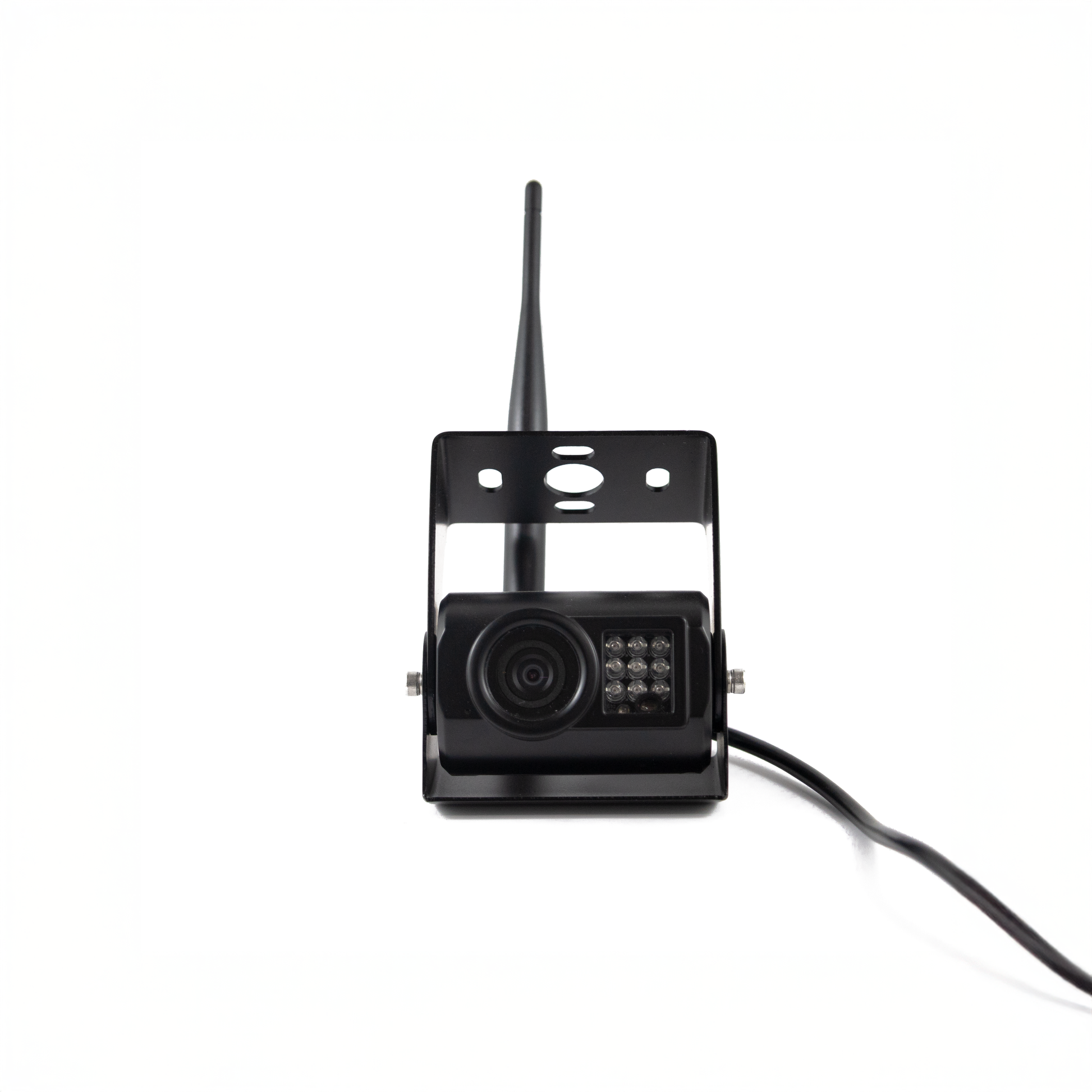

Camera
- Image Sensor: 1/3" Color
- Active Pixels: 1280 (H) x 960 (V)
- Viewing Angle: 120°
- Waterproof Rating: IP69K
- Night Vision Range: ~10 Meters
- Audio: Built-in High-Sensitivity Microphone
- Wireless Range: 150 Meters (Open Area)
- Power Supply: DC 10V - 36V
- Power Consumption: <6W
- Operating Temperature: -20°C to 60°C
Package Contents
- 1 x 7-Inch AHD Wireless DVR Monitor
- 1 x AHD Wireless Camera (or more, depending on the kit you sell)
- 1 x U-Shape Monitor Bracket
- 1 x Fan-Shape Monitor Bracket (for dash mounting)
- 2 x Power Cables (for monitor and camera)
- 2 x Antennas
- 1 x Set of Mounting Screws
- 1 x Instruction Manual
Note: A MicroSD/SD card is required for the DVR recording function and is not included.
ADDITIONAL INFO
ADDITIONAL INFO
Note: A MicroSD/SD card is required for the DVR recording function and is not included.
