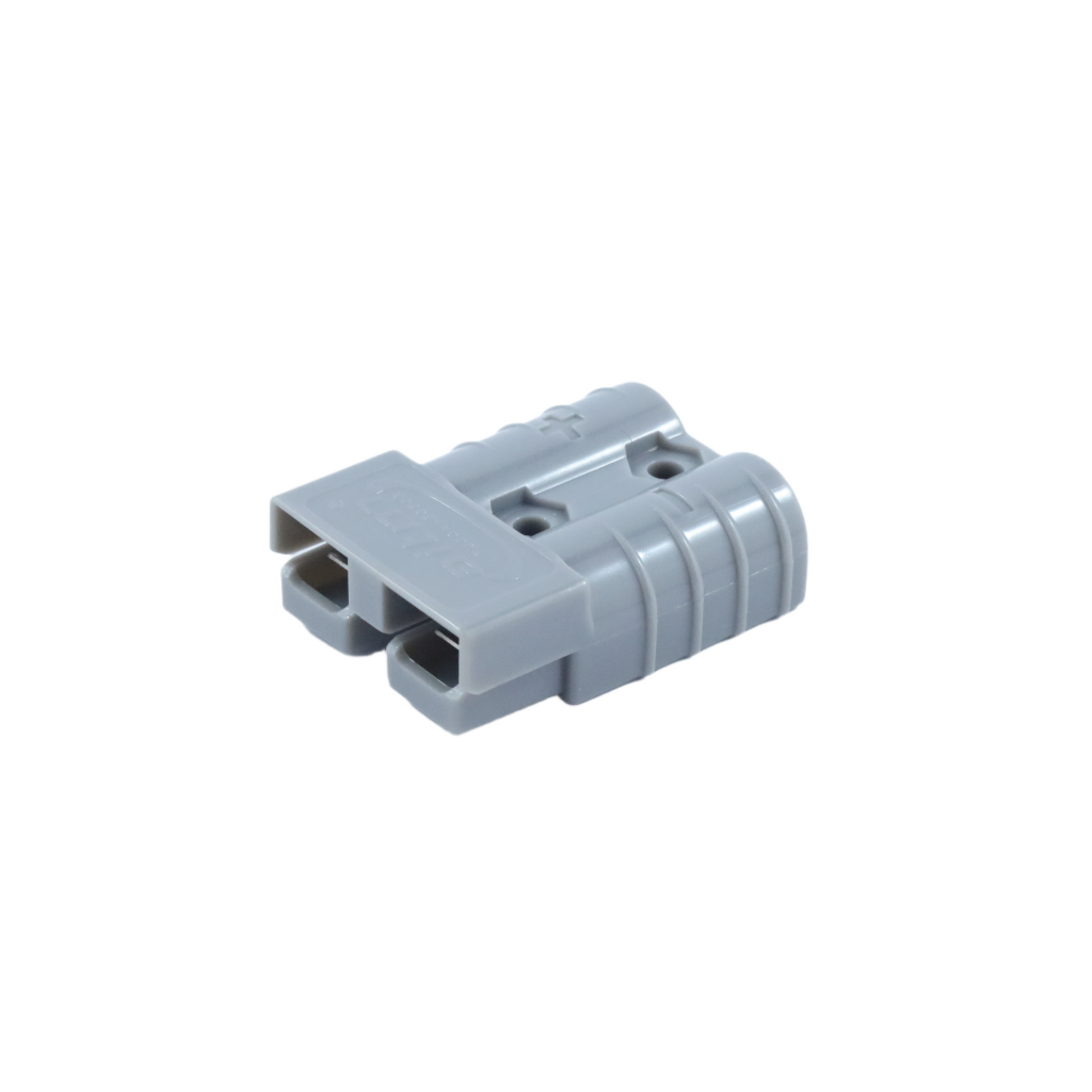

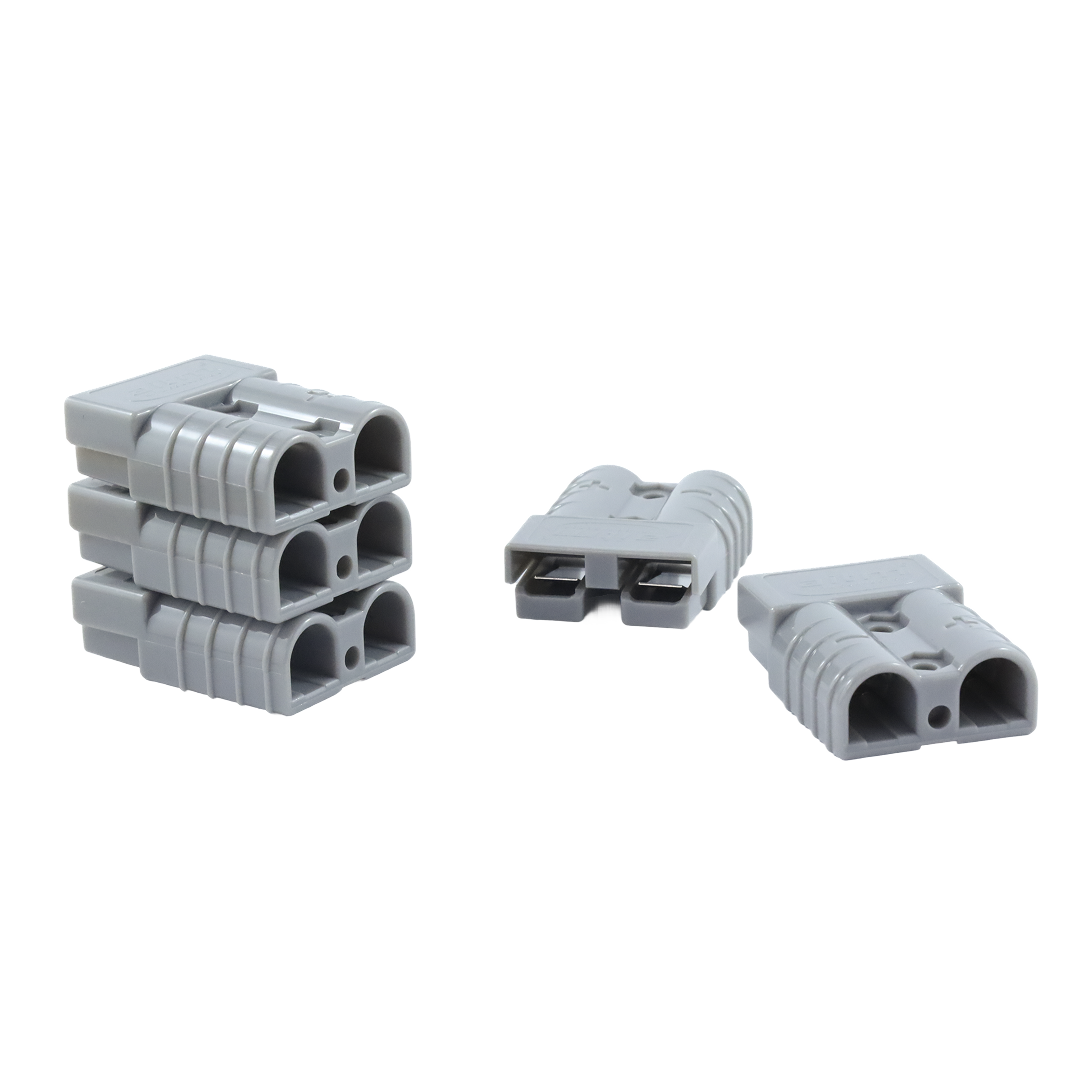

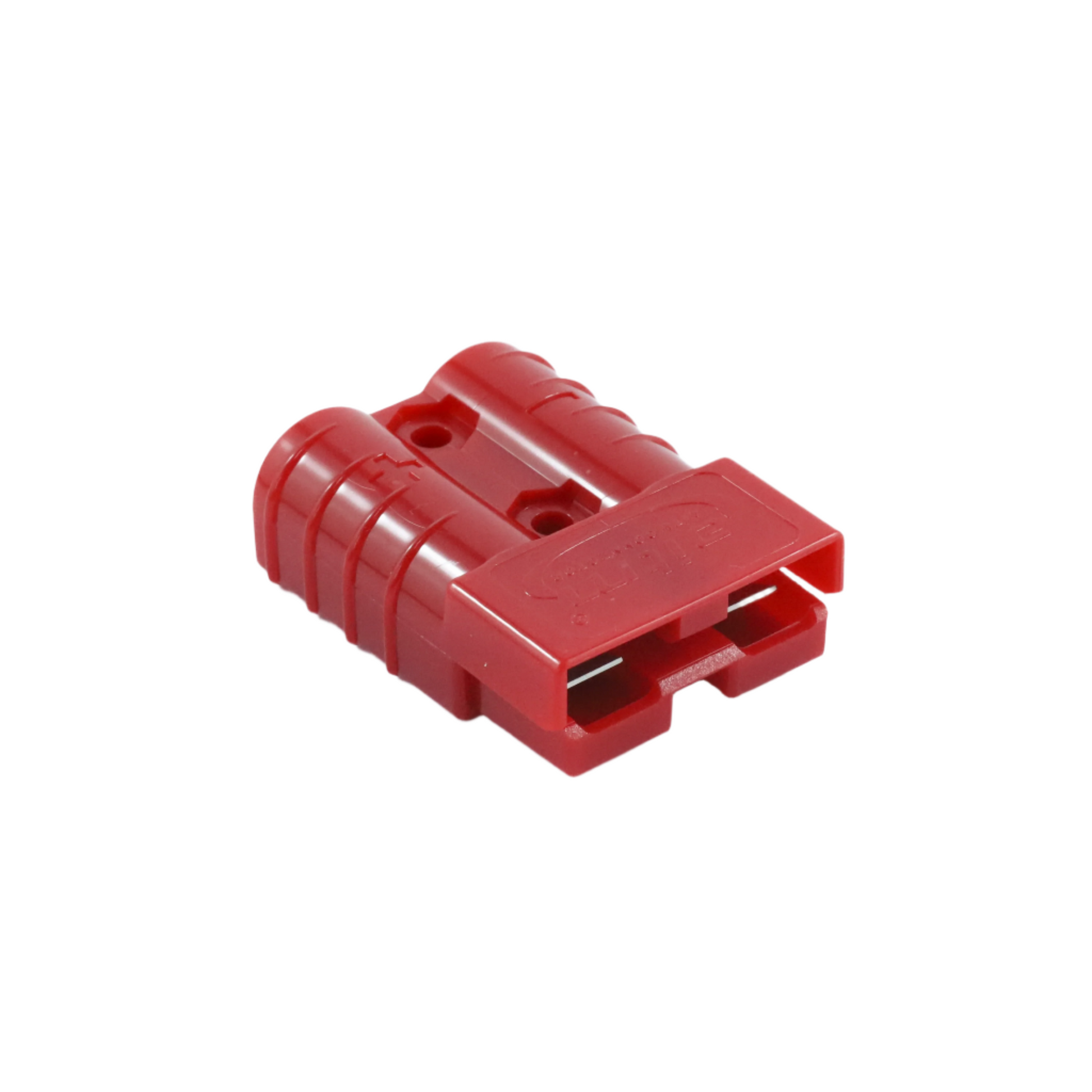

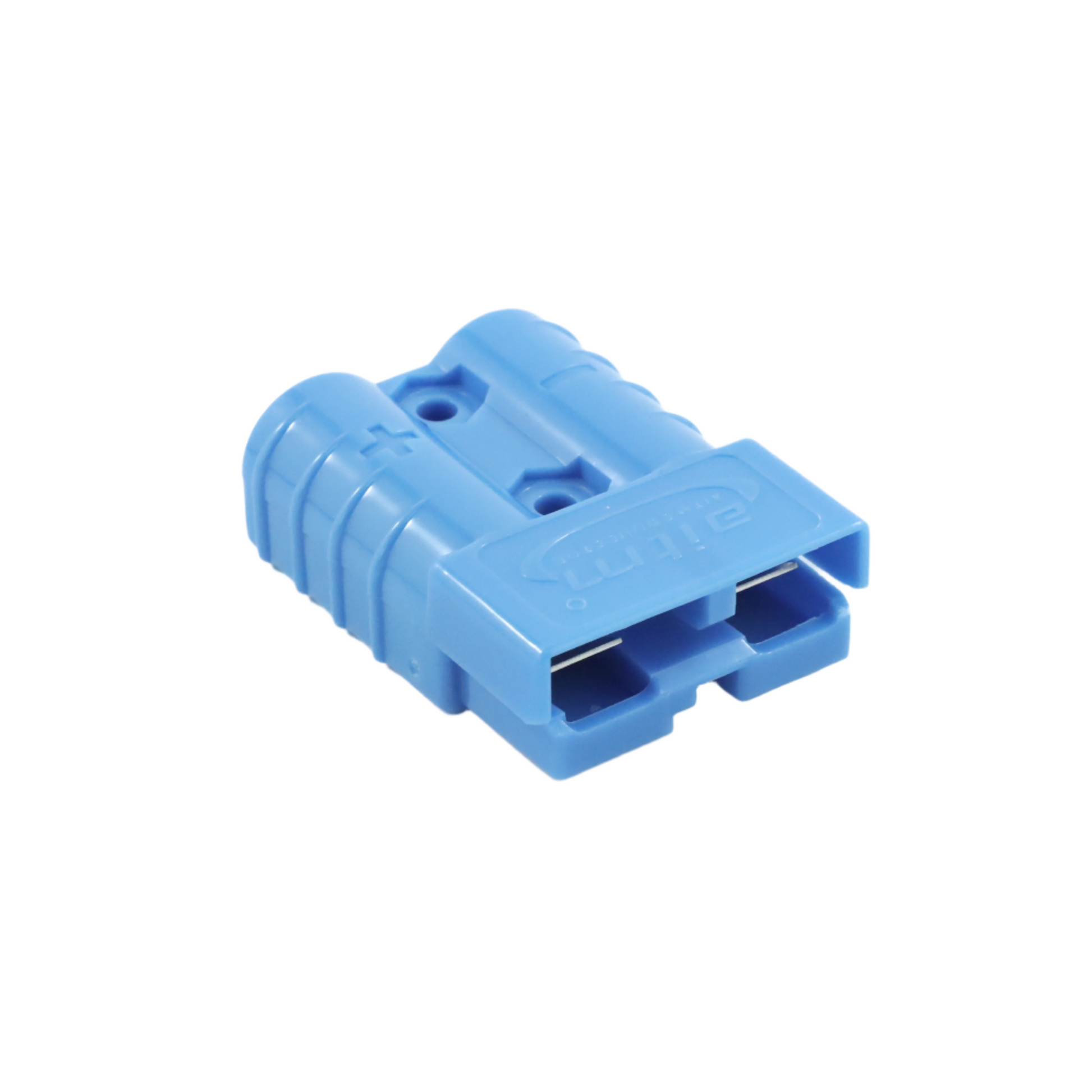

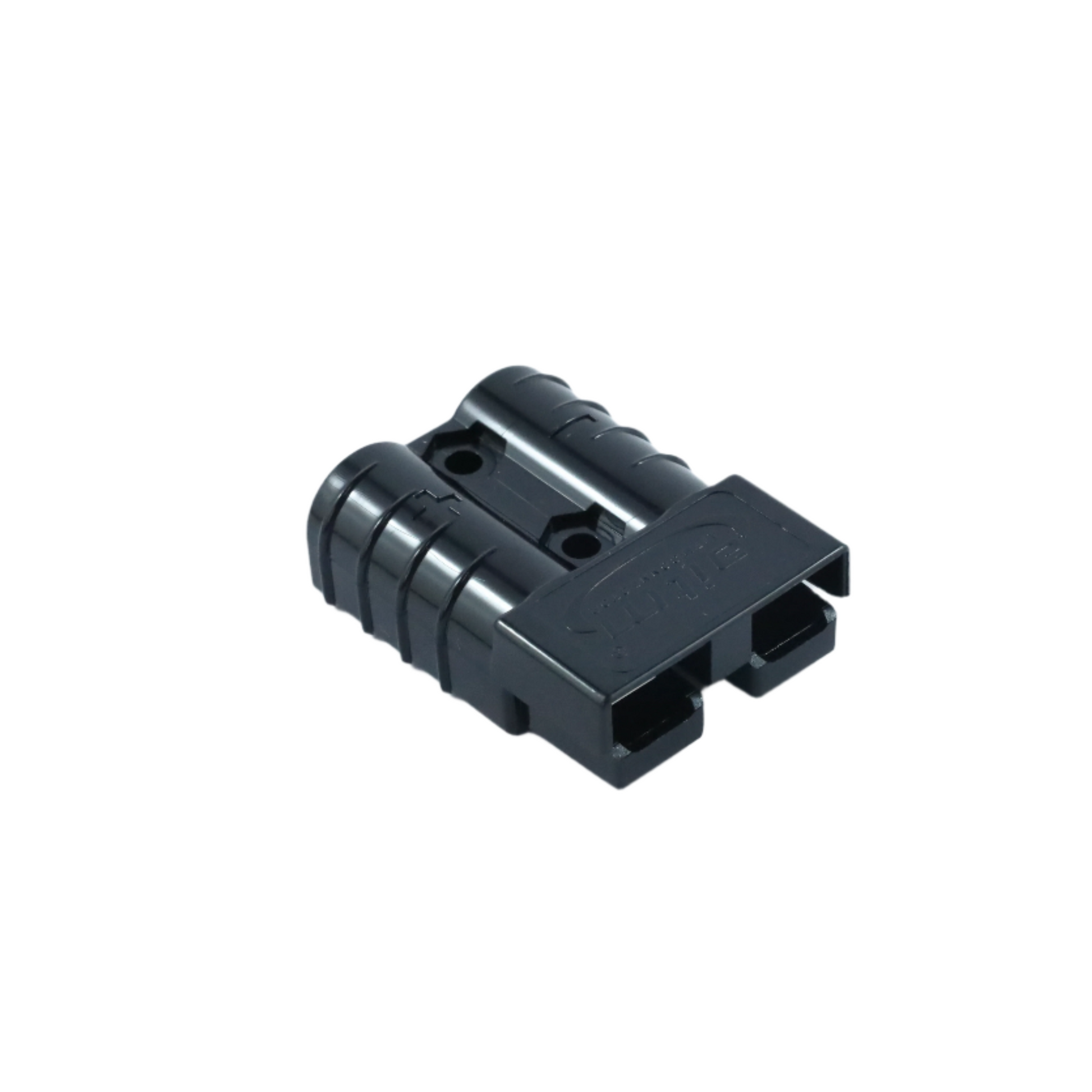

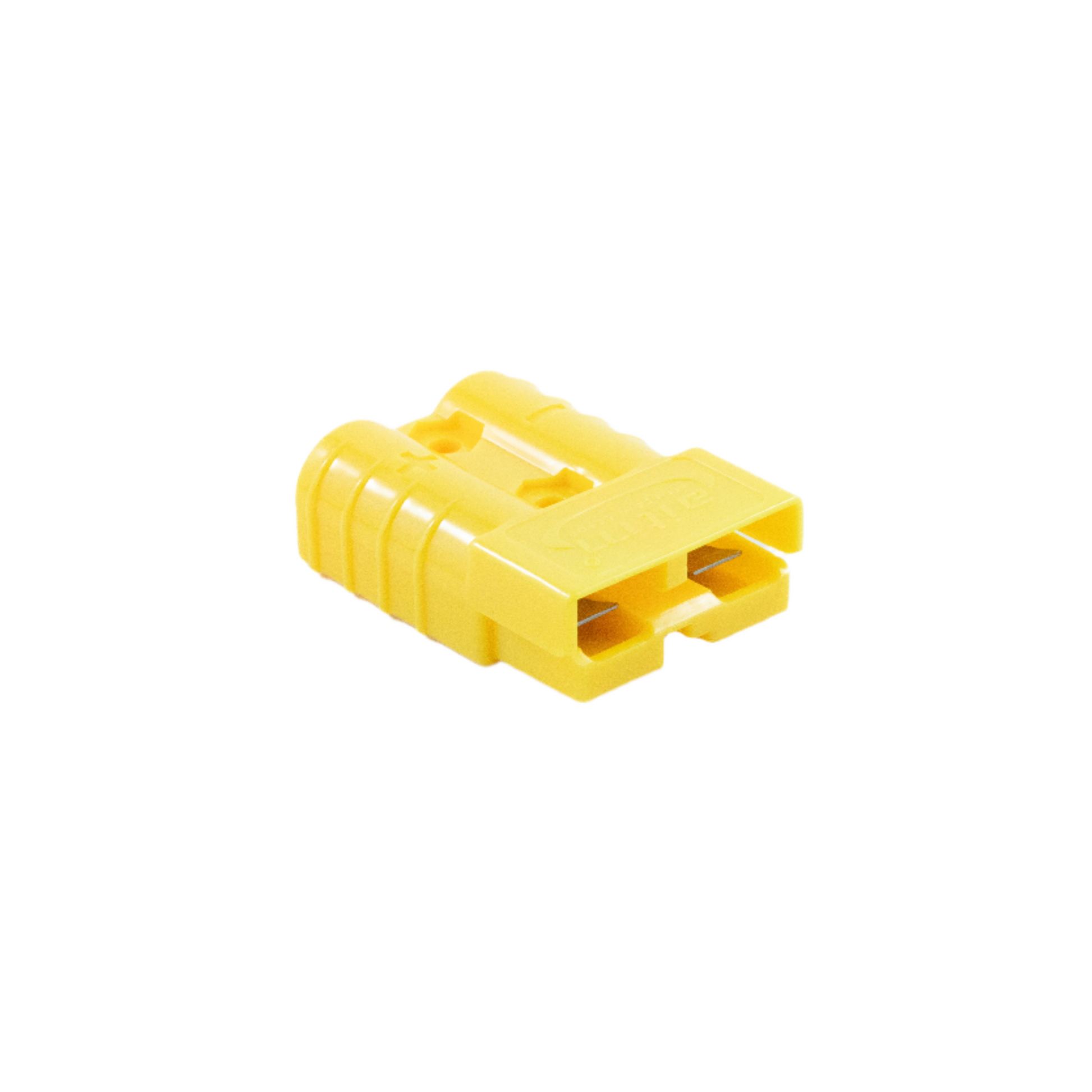

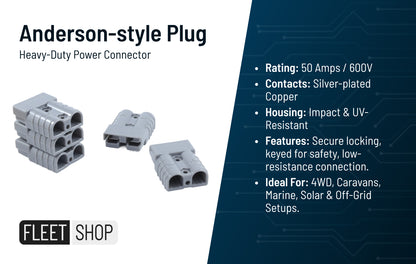

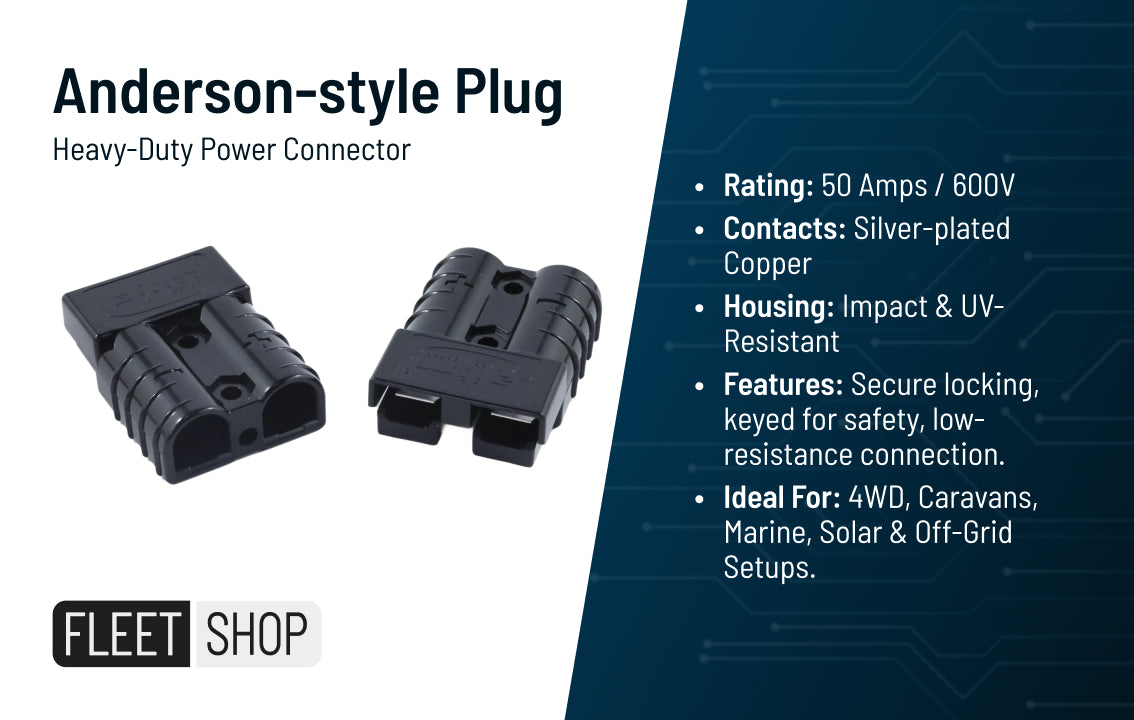

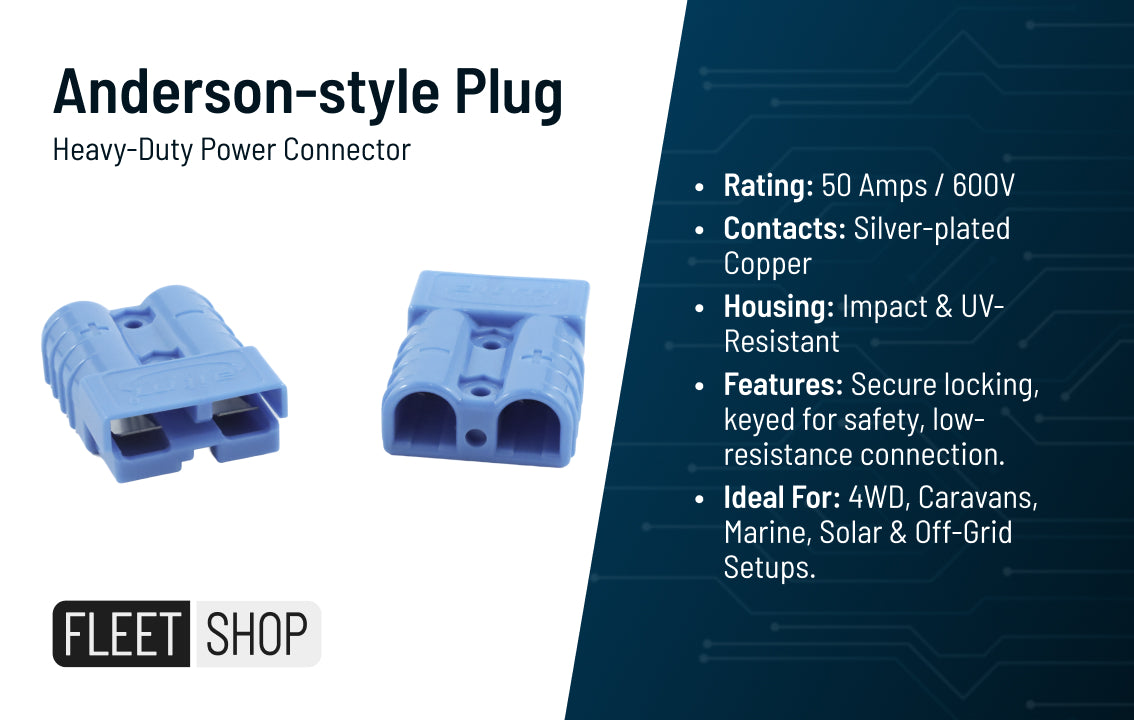

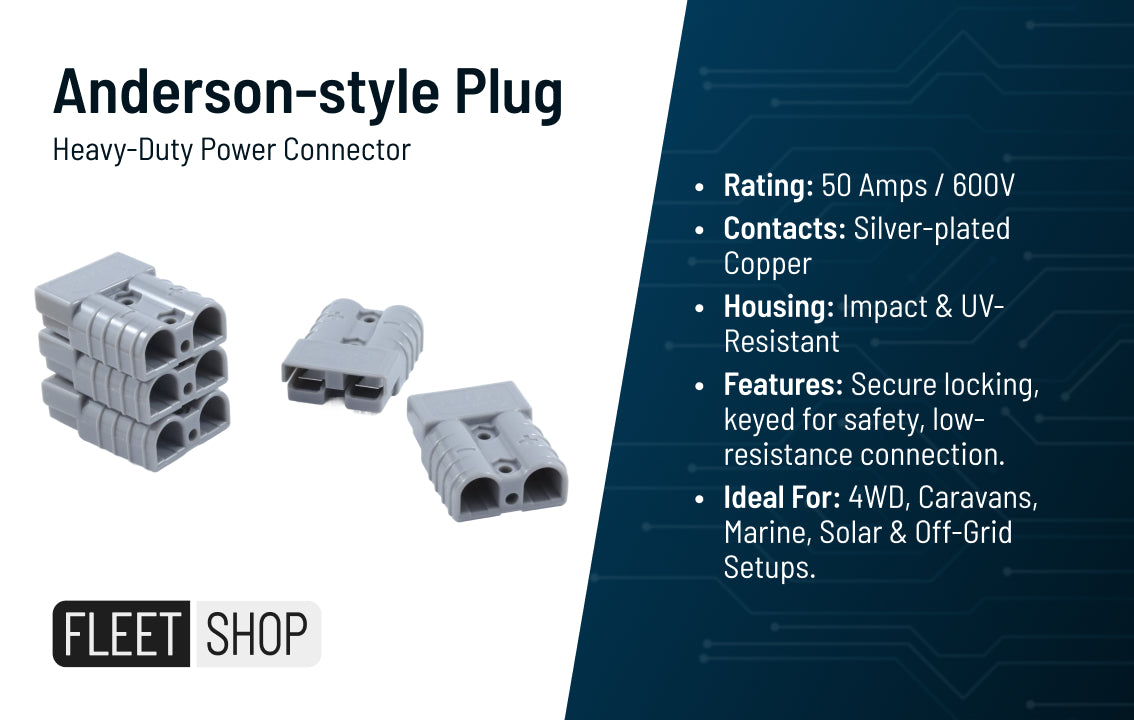

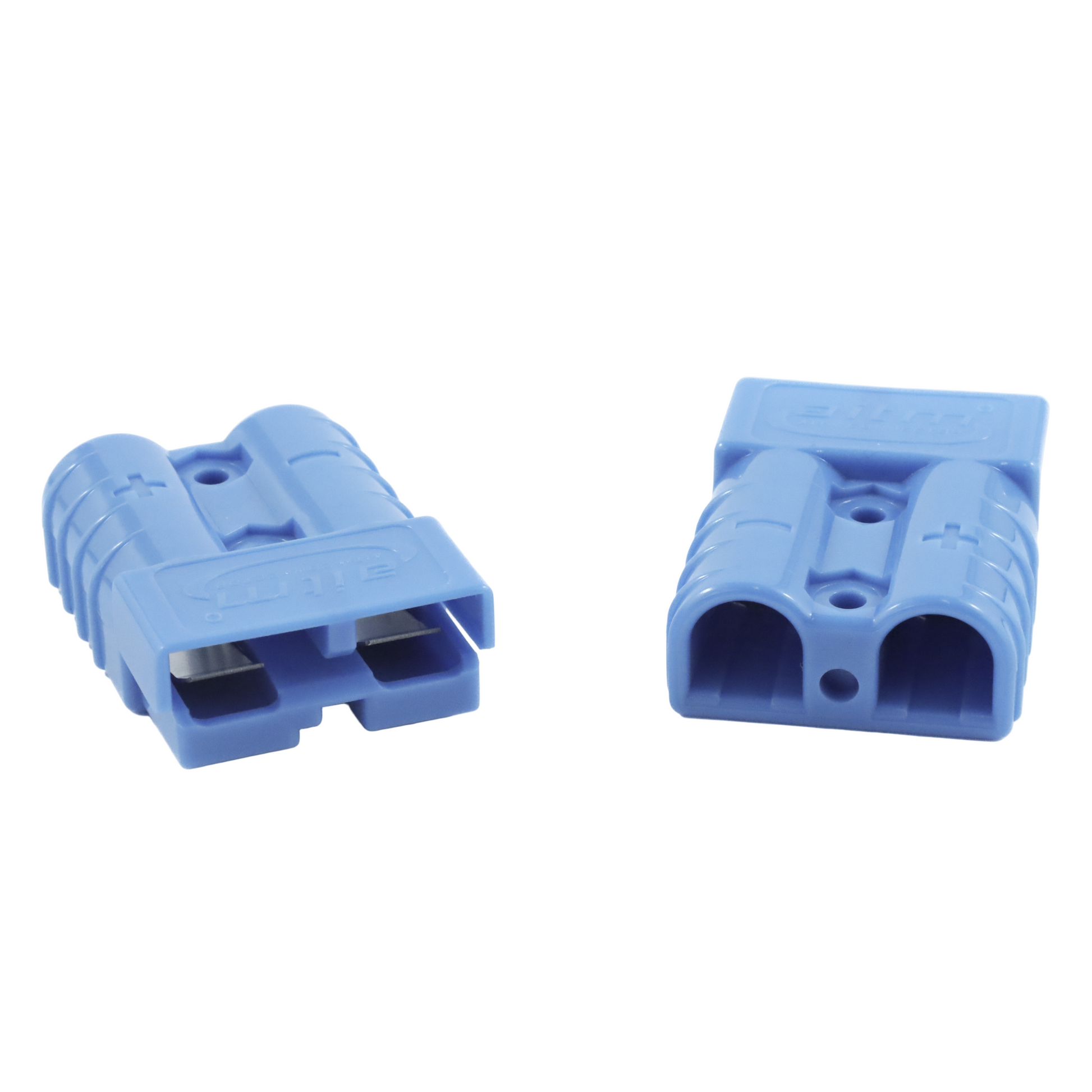

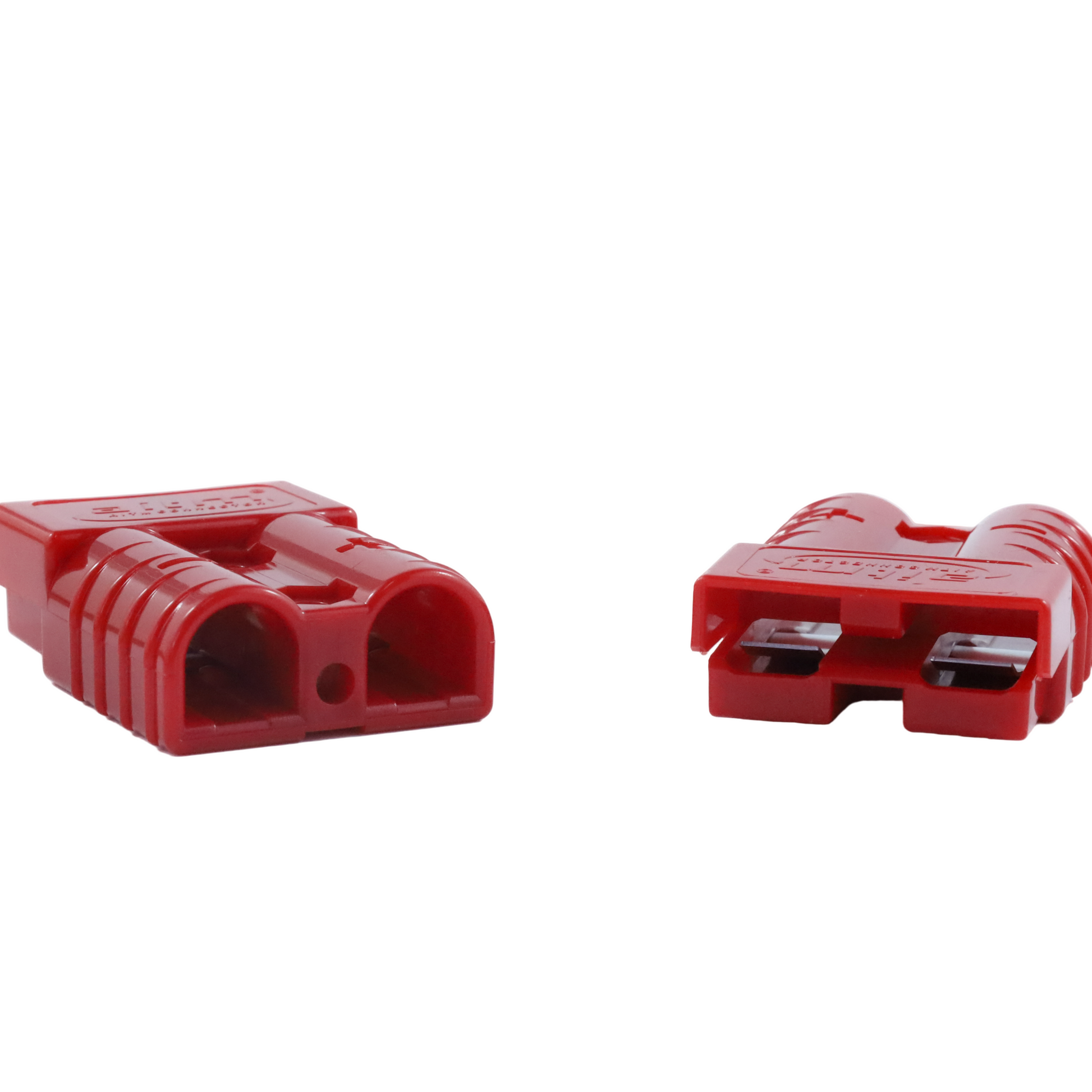

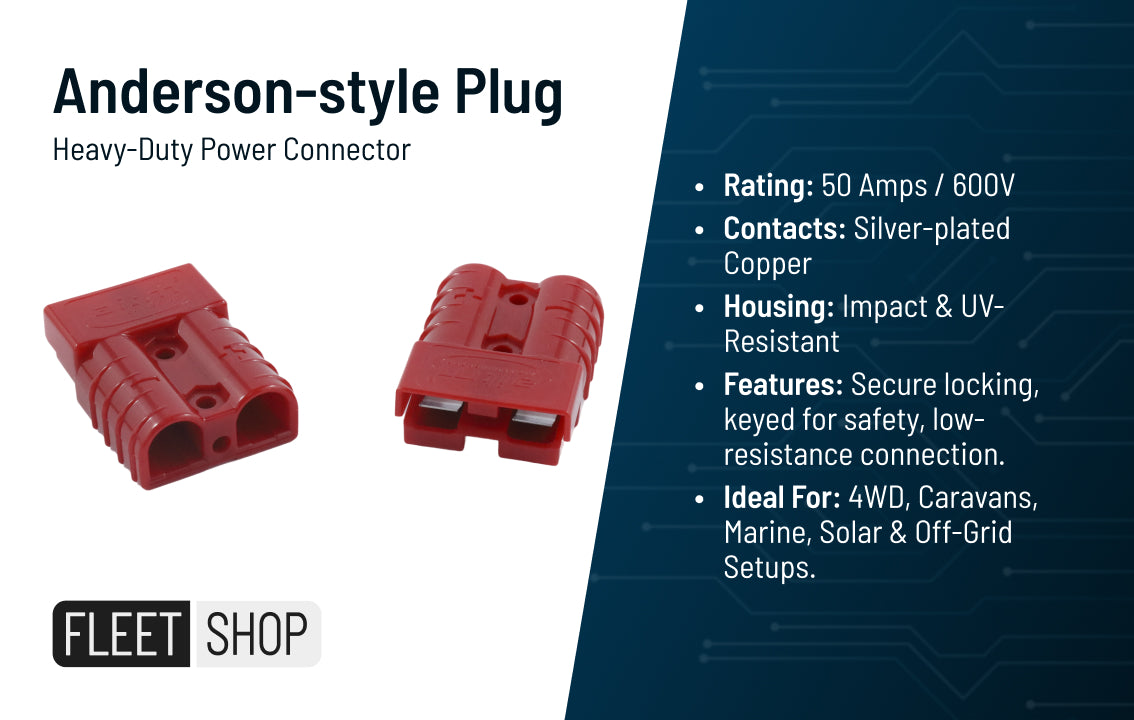

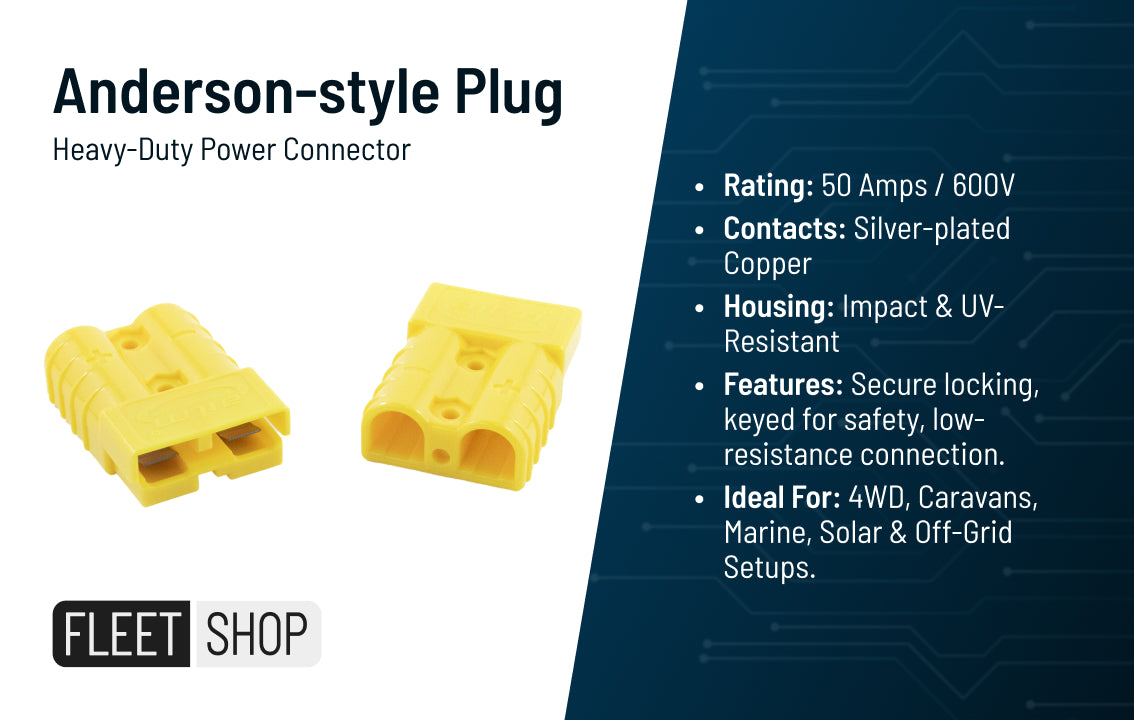

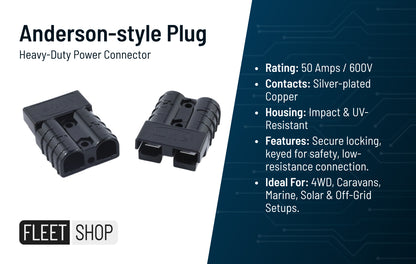

Anderson-style Plug – Heavy-Duty Power Connector
Anderson-style Plug – Heavy-Duty Power Connector
Couldn't load pickup availability
Description
Description
The Anderson-style plug is the industry standard for high-current, quick-connect DC power applications in mobile and off-grid systems. Built to handle demanding environments, it delivers a strong, reliable electrical connection between batteries, solar panels, towing vehicles, and accessories.
Made from impact-resistant housing and silver-plated copper contacts, the plug supports high current transfer with minimal voltage drop. It locks into place securely, preventing accidental disconnection during vibration or movement. Polarity is keyed to avoid incorrect connections, making it ideal for setups that require consistent, safe power delivery.
Commonly used in dual battery systems, caravan charging, trailer setups, and marine applications. Also widely used in 4WD and camper builds for running fridges, inverters, compressors, and solar regulators.
Key Features
Key Features
- High-current rated – ideal for 12V and 24V systems
- Secure locking connection with keyed polarity
- Low-resistance silver-plated contacts
- UV-stabilised and impact-resistant housing
- Simple push-in and pull-out design for fast connect/disconnect
- Suitable for fixed installs or portable kits
Use Case
Use Case
- Caravan battery charging from the tow vehicle
- Trailer-mounted solar panel connections
- 4WD dual battery systems
- Marine DC power supply connections
- Portable power boxes and inverters
Specifications
Specifications
- Type: Anderson-style SB50 plug

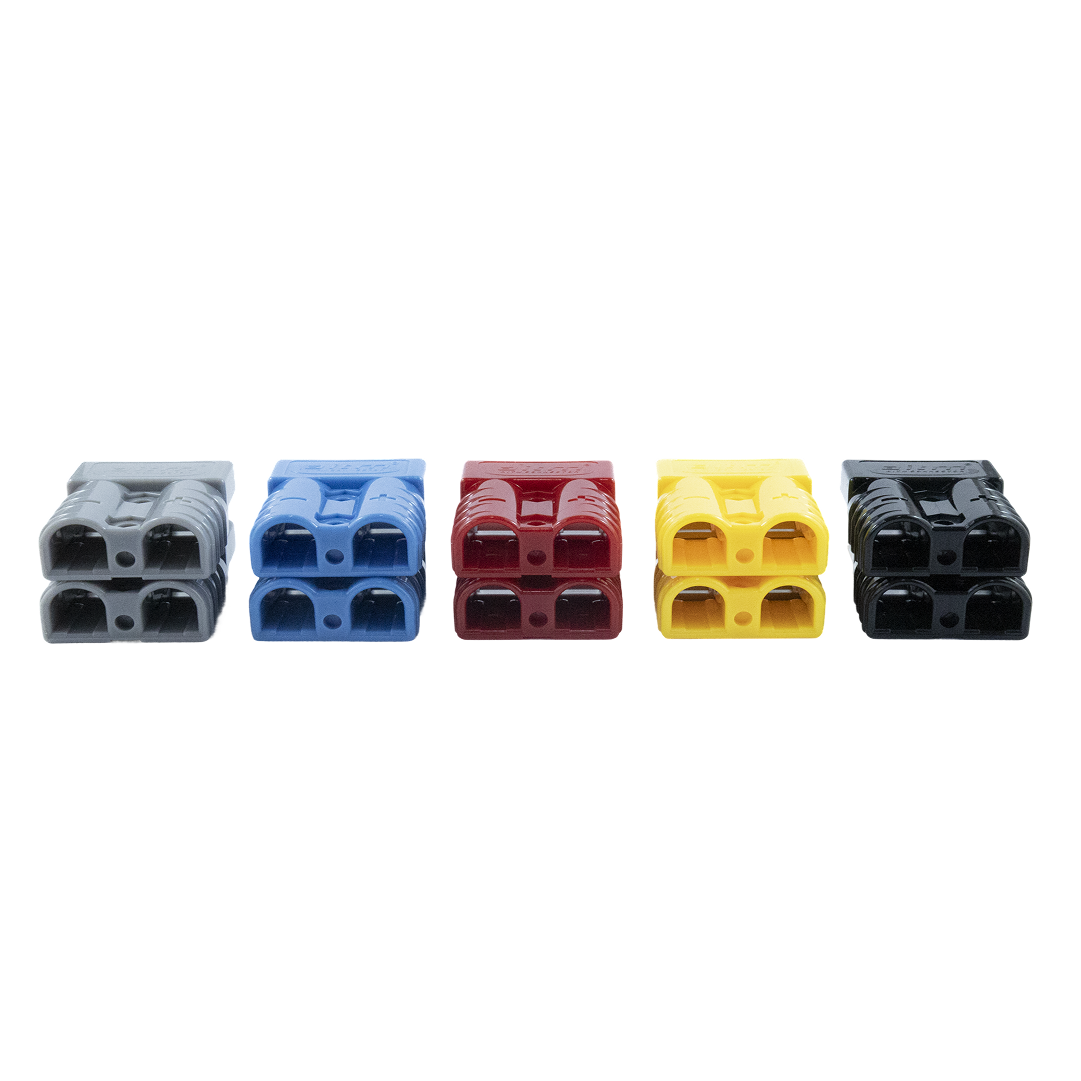

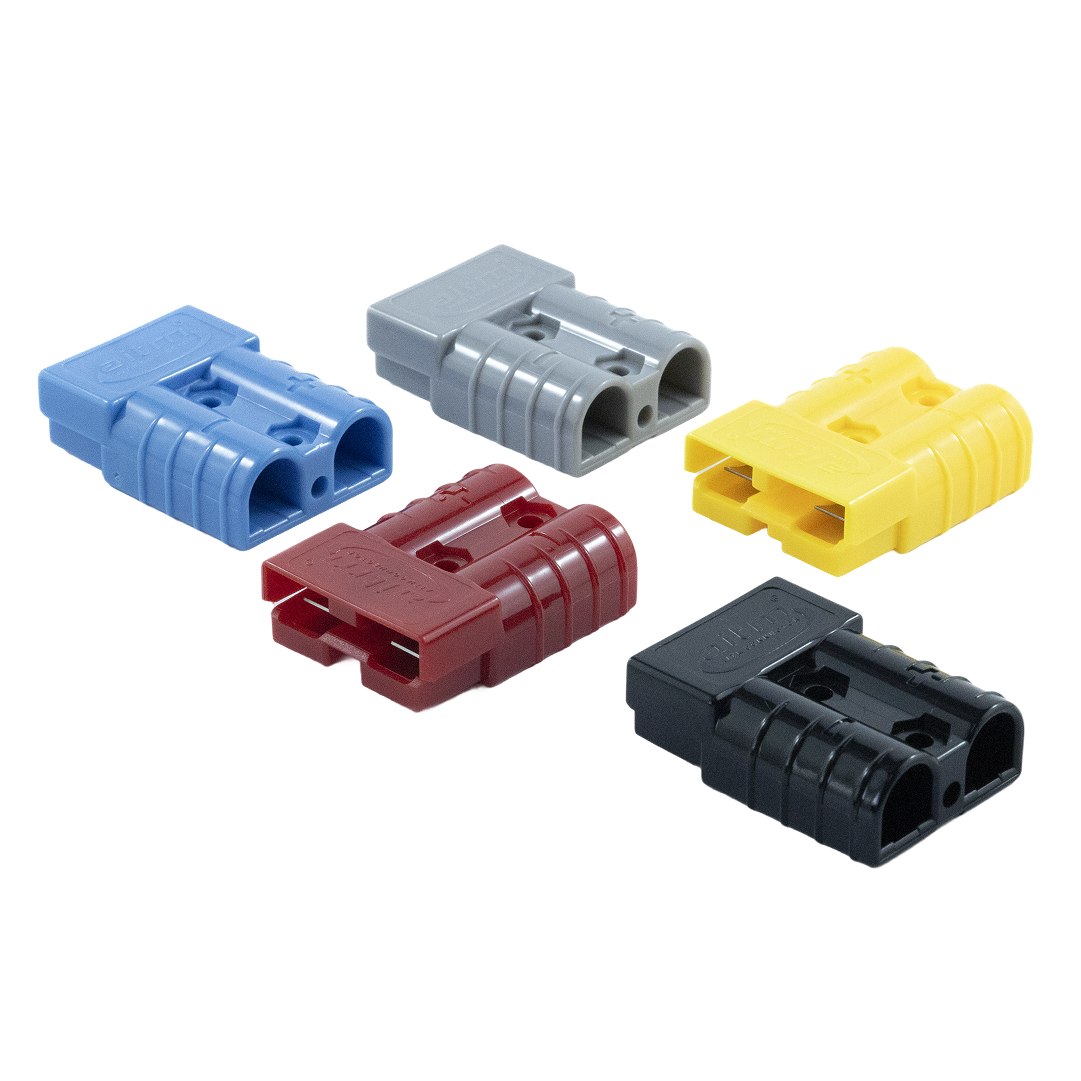

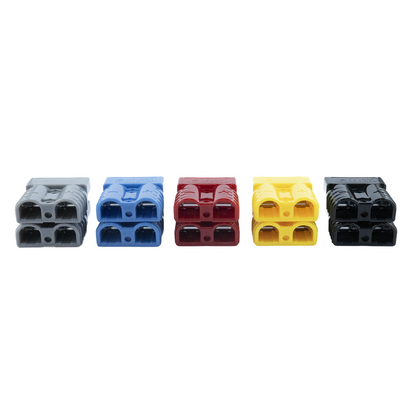

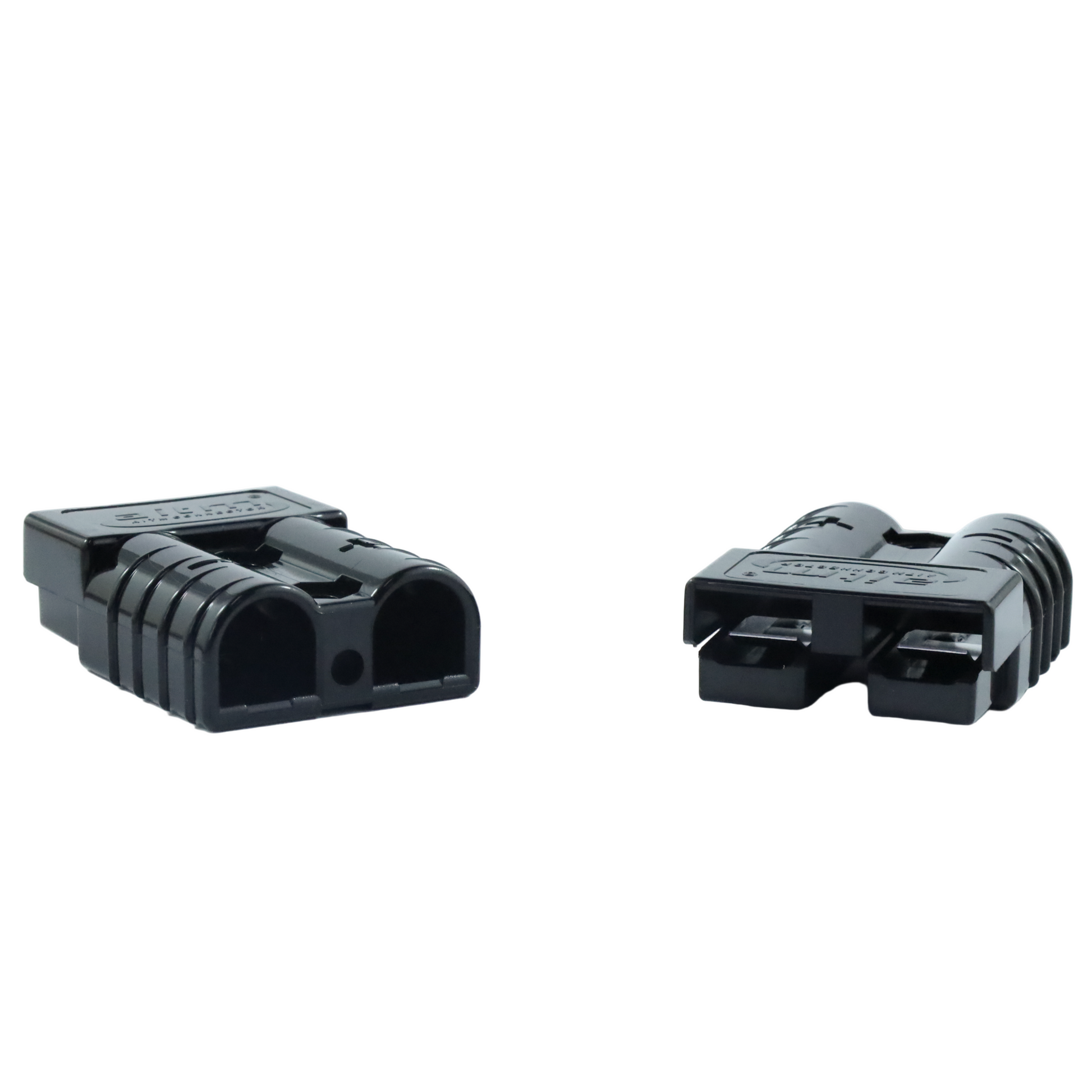

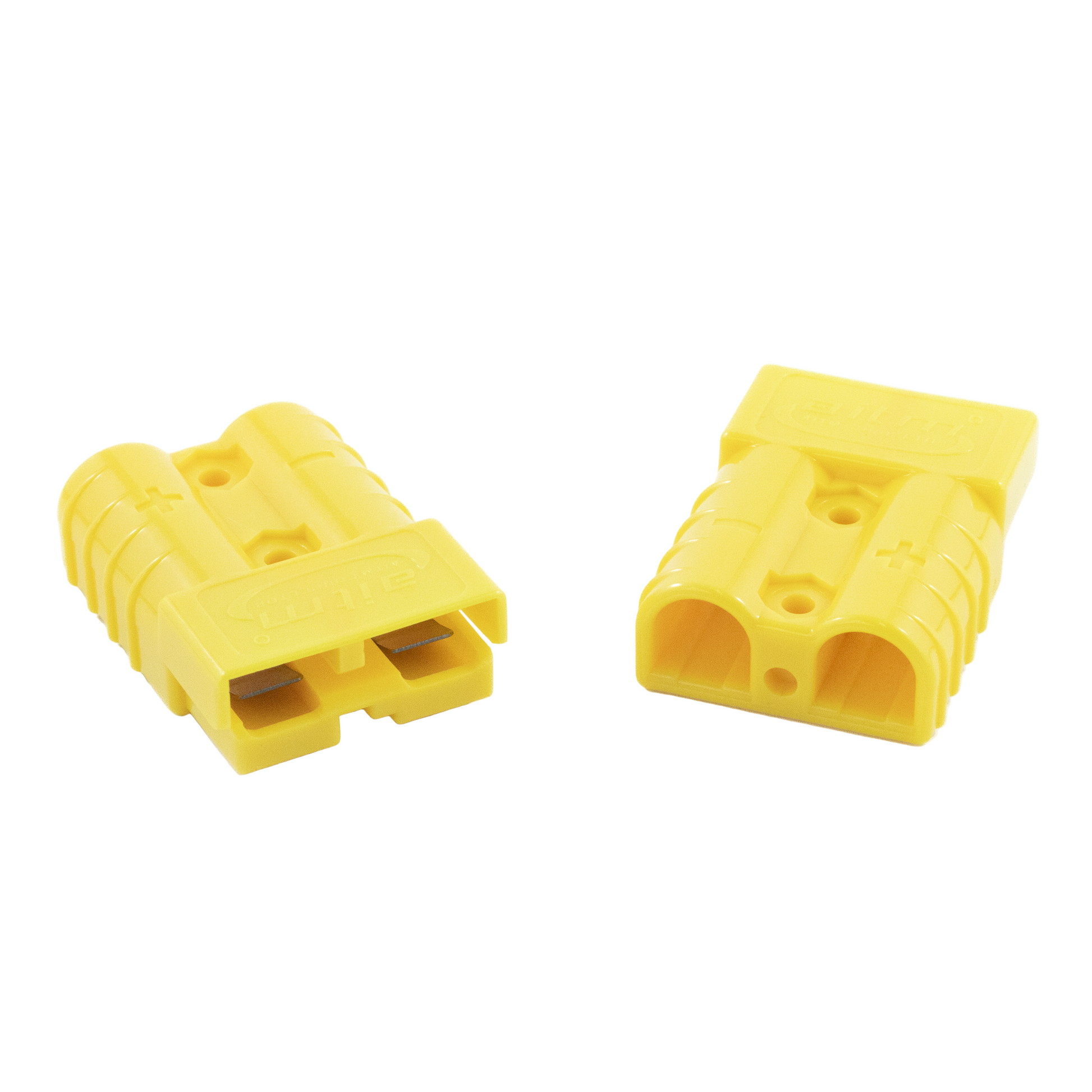

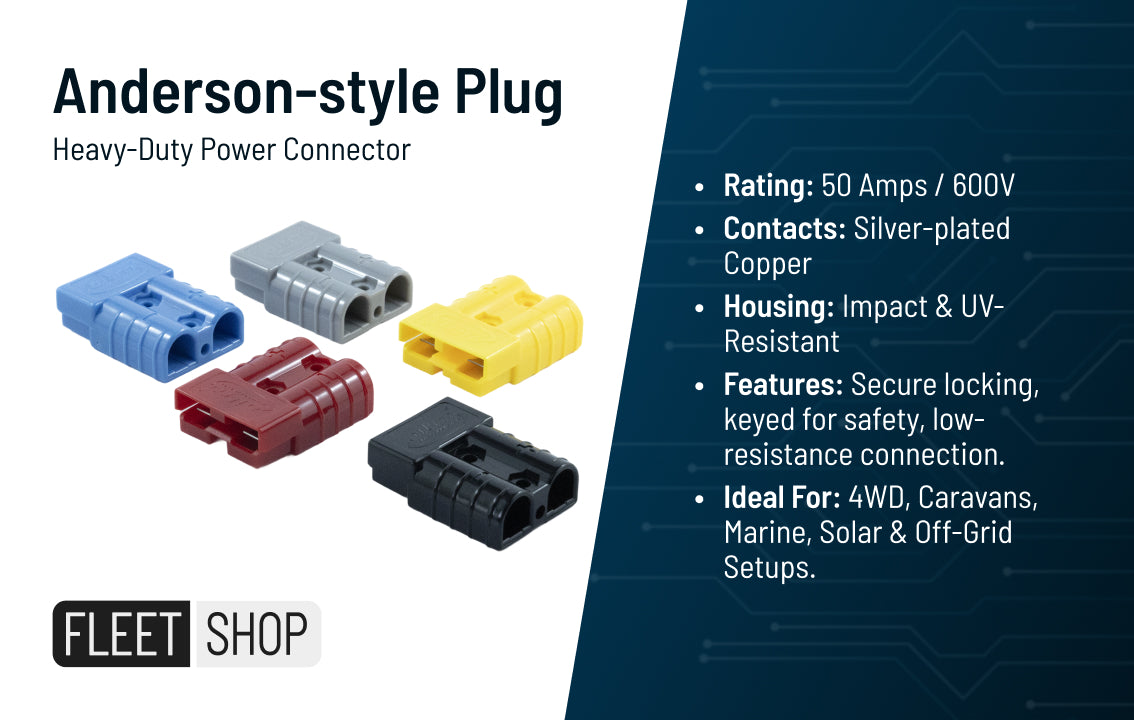

- Colour: Grey, Red, Blue, Yellow, Black
- Rated Voltage: 600V
- Rated Current: 50A
- Fire Retardant Grade: PC UL94V-0
- Plug Interface: Same-colour plug-in, regardless of male or female
- Support Customisation: Yes
Additional Info
Additional Info
Installer Notes:
Ensure tight crimp or solder contact for maximum performance. Use matching coloured Anderson-style connectors to complete the circuit. Mount using panel plates or leave loose for mobile use.
