Level Tag – Smart Tilt Sensor for Caravans & Trailers
Level Tag – Smart Tilt Sensor for Caravans & Trailers
Couldn't load pickup availability
DESCRIPTION
DESCRIPTION
LevelTAG is a smart levelling system designed for caravans, trailers, RVs, and campervans. No more guesswork, spirit levels, or uneven nights. With real-time dual-axis tilt detection, you’ll know exactly how to adjust your vehicle for a perfect setup.

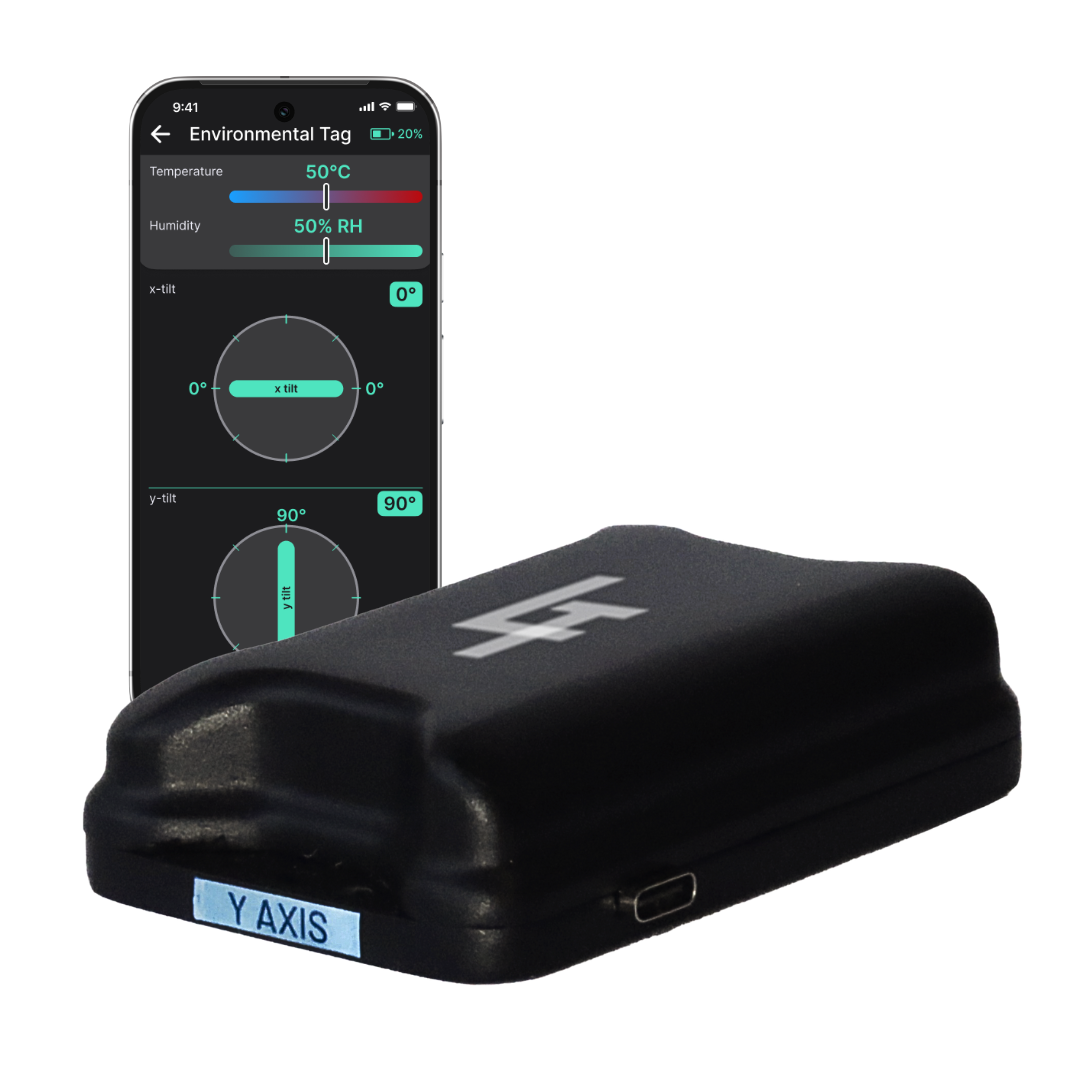

Wirelessly connect to your smartphone using Bluetooth and monitor the levelling process from anywhere around your vehicle. Whether you’re solo camping or setting up a fleet of trailers, LevelTAG makes the process faster, easier, and more precise.
But that’s not all; it also features temperature and humidity sensors, so you can track internal conditions and protect equipment, food, or comfort. With a rugged, tool-free design, it’s universally compatible with all trailers, campervans, and RVs. LevelTAG is built by WHG leaders in structural health and sensor-based monitoring solutions.
LevelTAG gives you total setup control and climate awareness, wherever you go.
KEY FEATURES
KEY FEATURES
- Real-Time Tilt Detection – View front-to-back and side-to-side angles live on your phone for fast, accurate trailer or campervan levelling.
- Bluetooth Connectivity – Wirelessly sync with your smartphone and monitor levelling from outside or inside your vehicle.
- Dual Power Options – Use 2x AA batteries or plug in via USB-C. Automatically switches to wired power to preserve battery life.
- Compact & Easy to Install – Lightweight and universal design fits any trailer, campervan, RV, or mobile unit.
- Temp & Humidity Monitoring – Built-in sensors give extra insight into interior conditions, protecting sensitive cargo and comfort.
USE CASE
USE CASE
Caravans & Campers – Achieve a perfectly level setup in minutes for better sleep and safer appliance use.
Cargo Trailers – Ensure balanced load distribution and monitor environmental conditions.
Pet or Animal Transport – Keep the enclosure level and monitor heat/humidity for animal comfort.
Refrigerated Trailers – Combine levelling with climate monitoring for better cold chain control.
DIY and Off-Grid Living – Ideal for use with tiny homes, mobile offices, or portable cabins.
SPECIFICATIONS
SPECIFICATIONS
Model Name: LevelTAG
Item Weight: Approx. 150 g (including batteries)
Product Dimensions: 82.5mm (L) x 52.5mm(W) x 21.5mm(H)
Power Source: 2x AA Batteries or USB-C wired power
Battery Life: Up to 12 months (on typical use with AA)
Connectivity: Bluetooth (App-controlled)
Compatibility: iOS & Android Devices
Sensors: Dual-Axis Tilt, Temperature, Humidity
Installation: Tool-free, compact design
Display: Via companion mobile app
Ingress Protection: Splash-resistant (Indoor use recommended)
Tilt Measurement: Dual-axis (front-to-back, side-to-side)
ADDITIONAL INFO
ADDITIONAL INFO
Tilt & Motion Detection:
- Tilt Sensing: Dual-axis (front-to-back & side-to-side)
- Detection Type: Fixed-function tilt with real-time updates
- Resolution: High sensitivity to detect even small vibrations
- Motion Sensing: 3-axis motion awareness for dynamic & static stability
Temperature Monitoring:
- Range: –40°C to +125°C
- Typical Accuracy: ±0.1°C (0°C to 50°C range)
- Drift: ~0.03°C per year
- Response Time: ~2 seconds
Humidity Monitoring:
- Range: 0% to 100% RH
- Typical Accuracy: ±0.5% RH (in 10–50% RH range)
- Max Deviation: ±3.5% RH
- Response Time: ~5 seconds
- Moisture Handling: Built-in condensation mitigation
