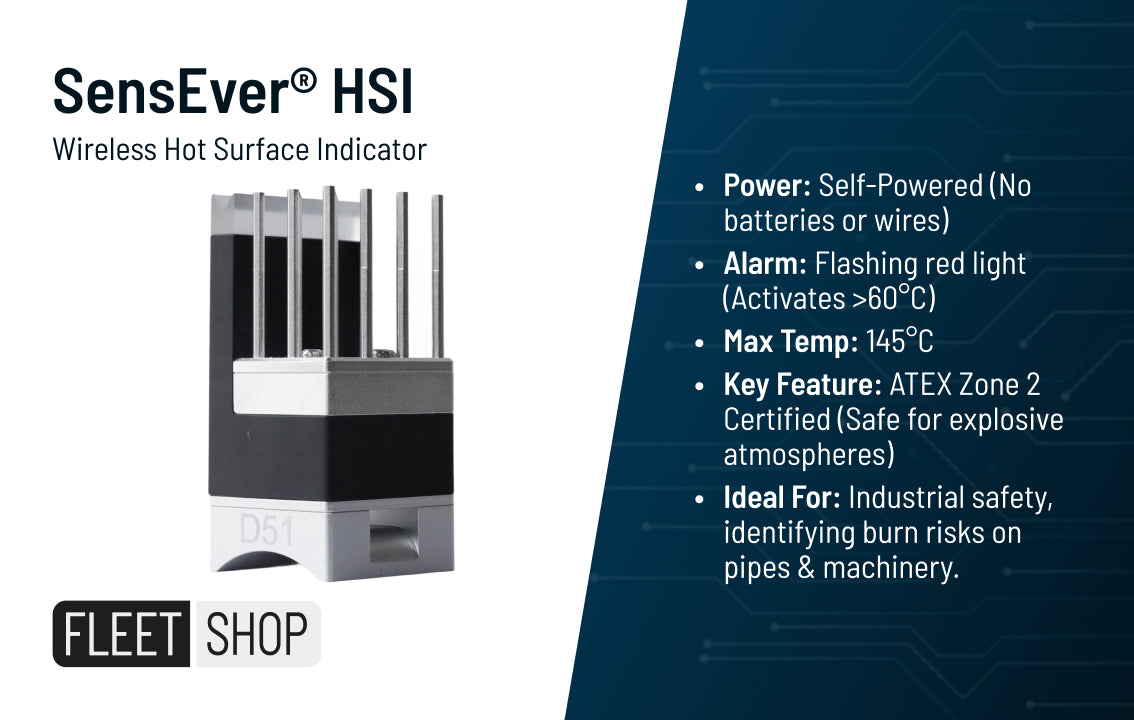

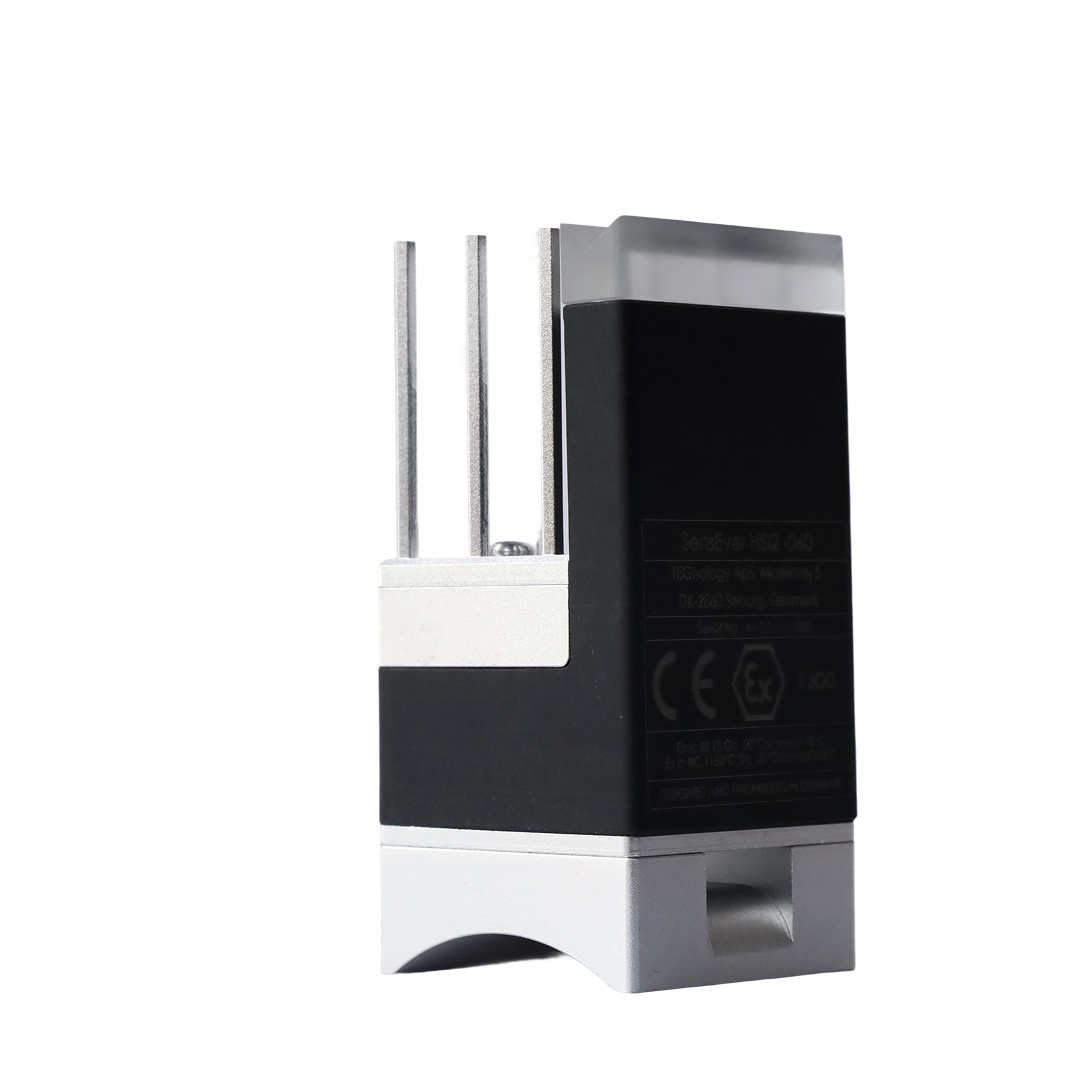

SensEver® - Wireless Hot Surface Indicator
SensEver® - Wireless Hot Surface Indicator
Couldn't load pickup availability
DESCRIPTION
DESCRIPTION

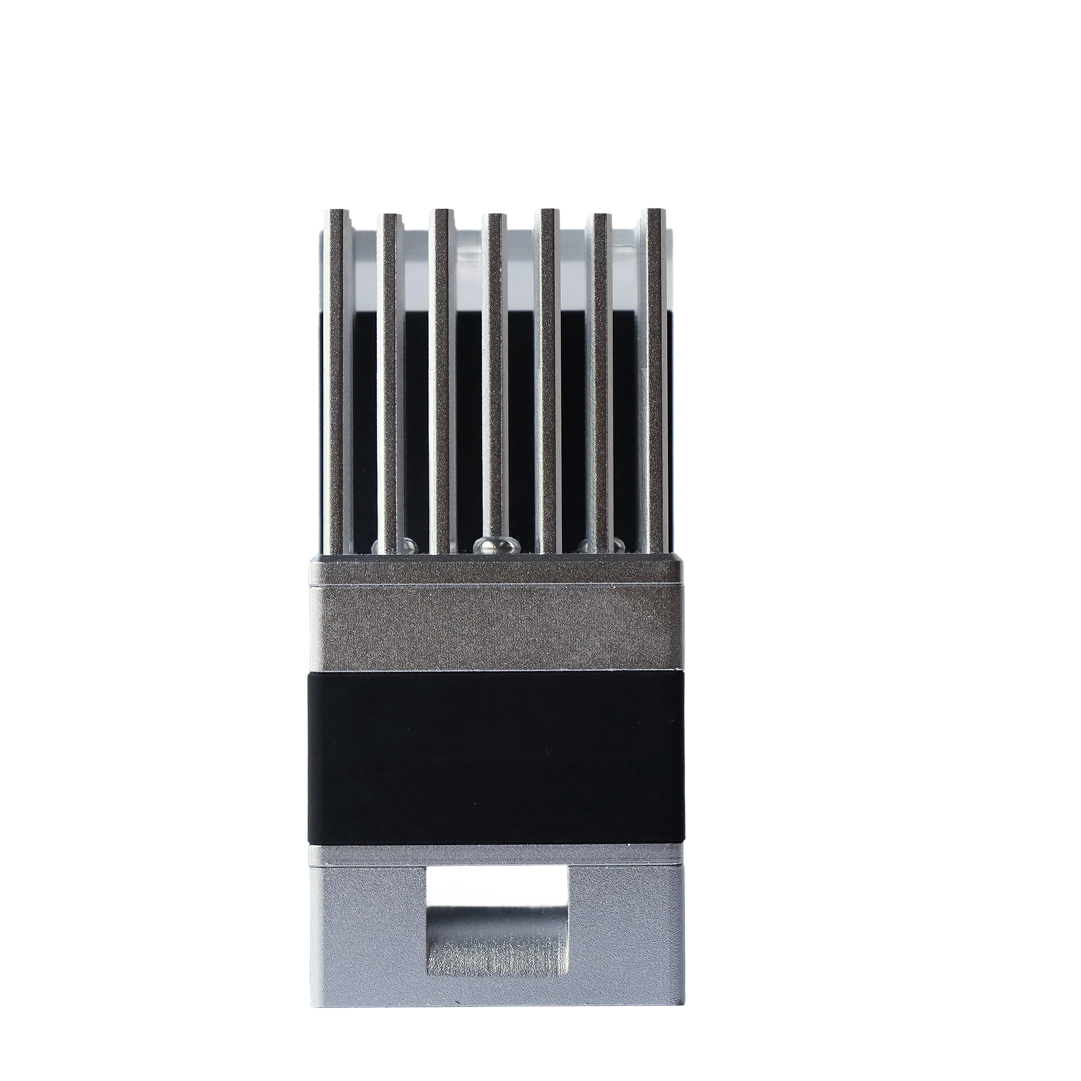

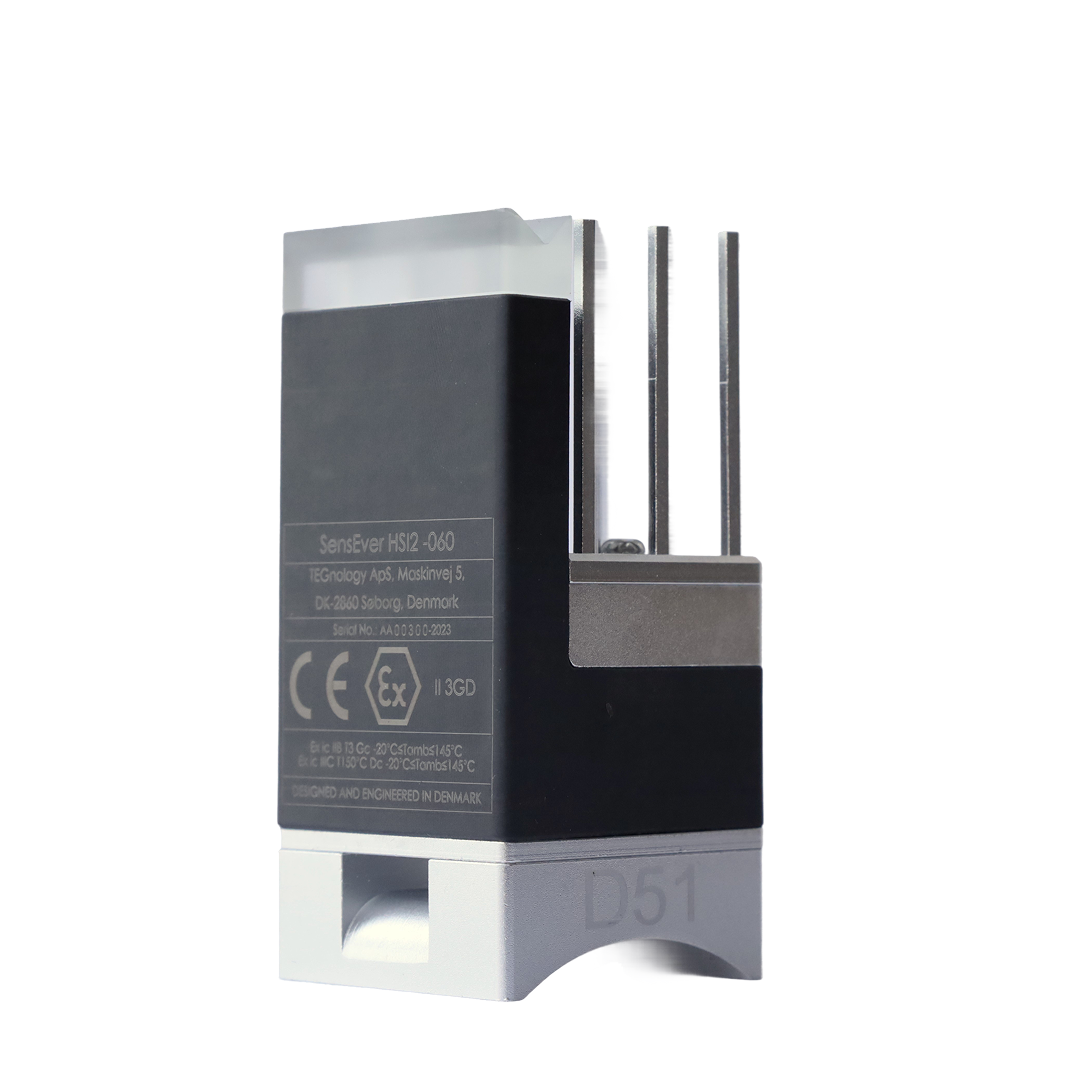

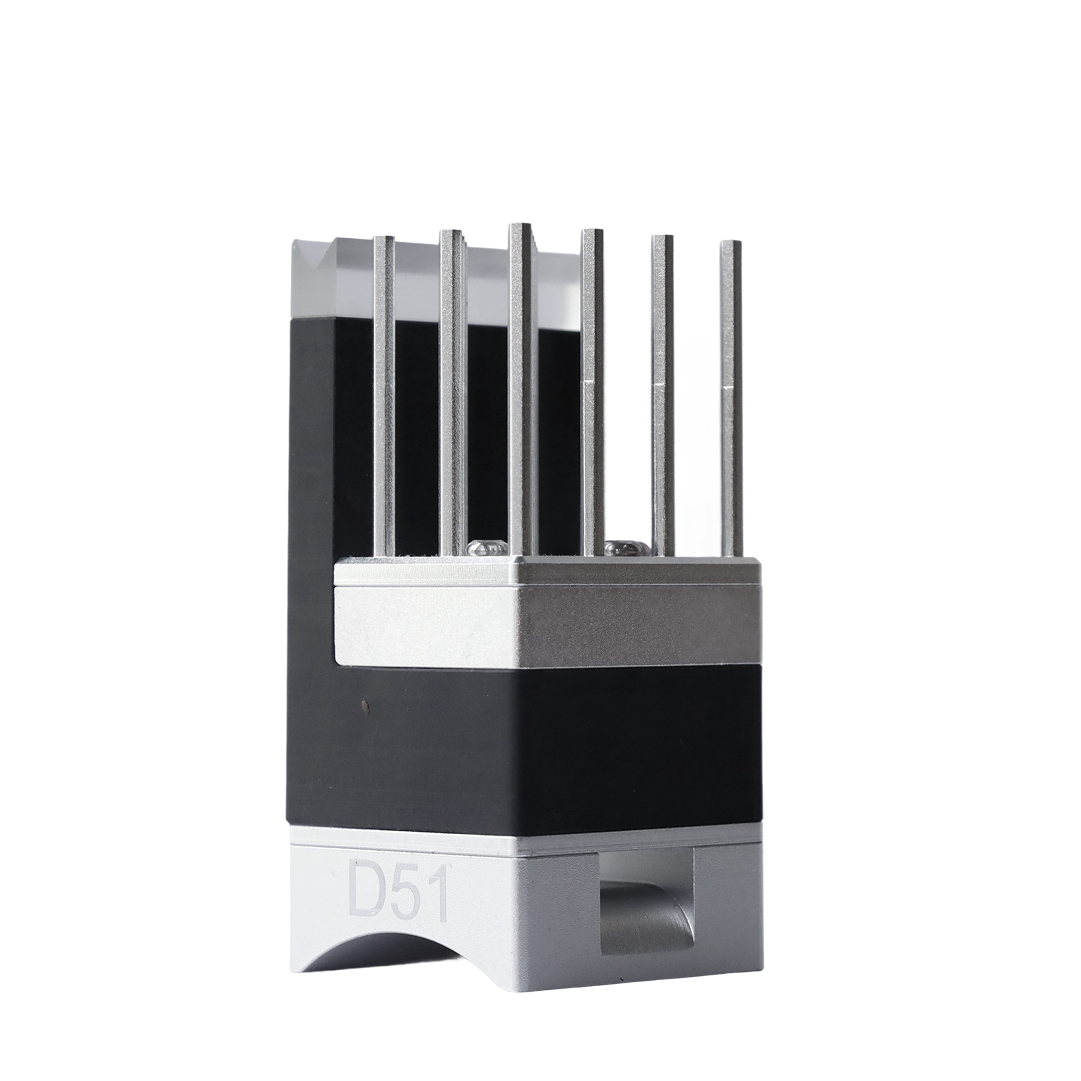

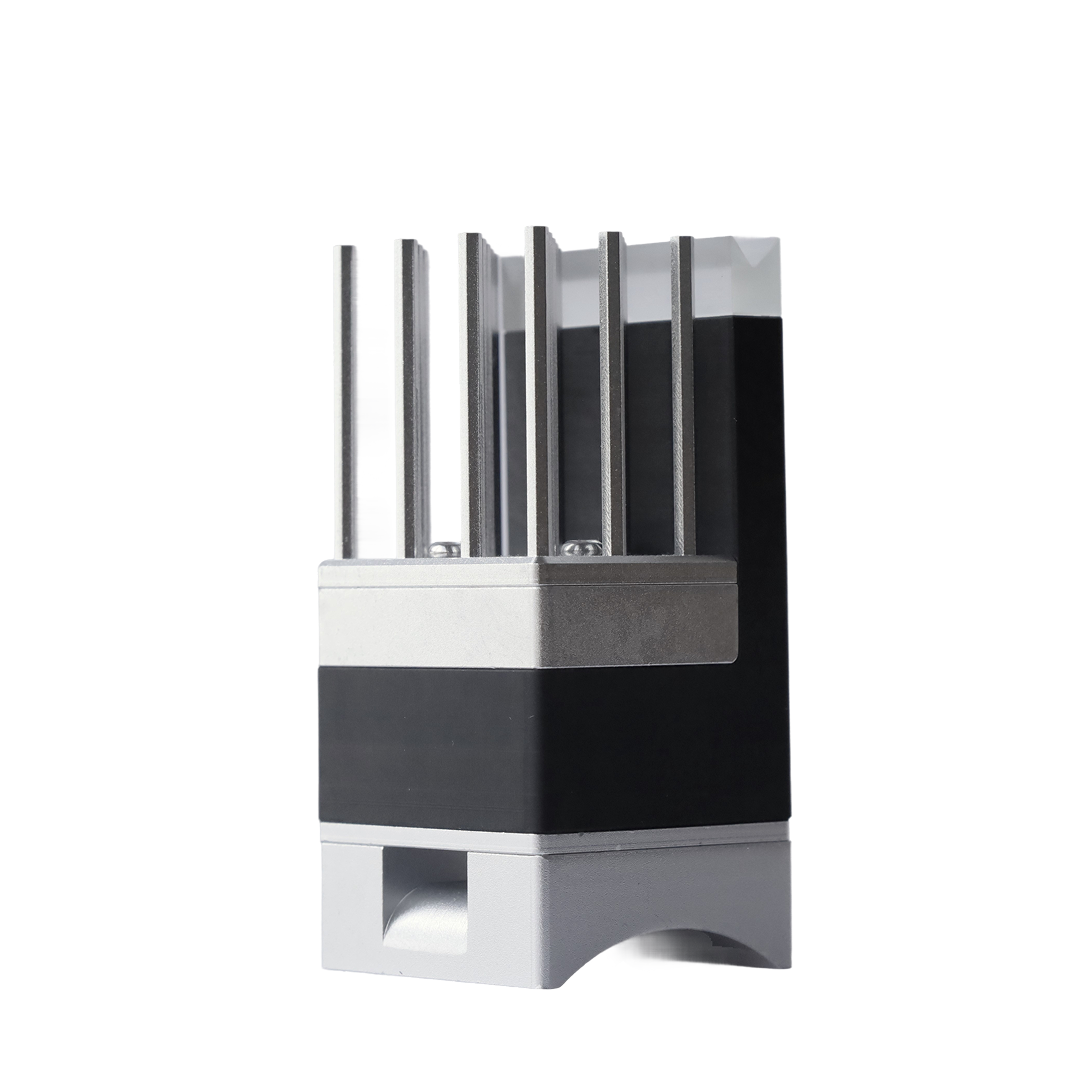

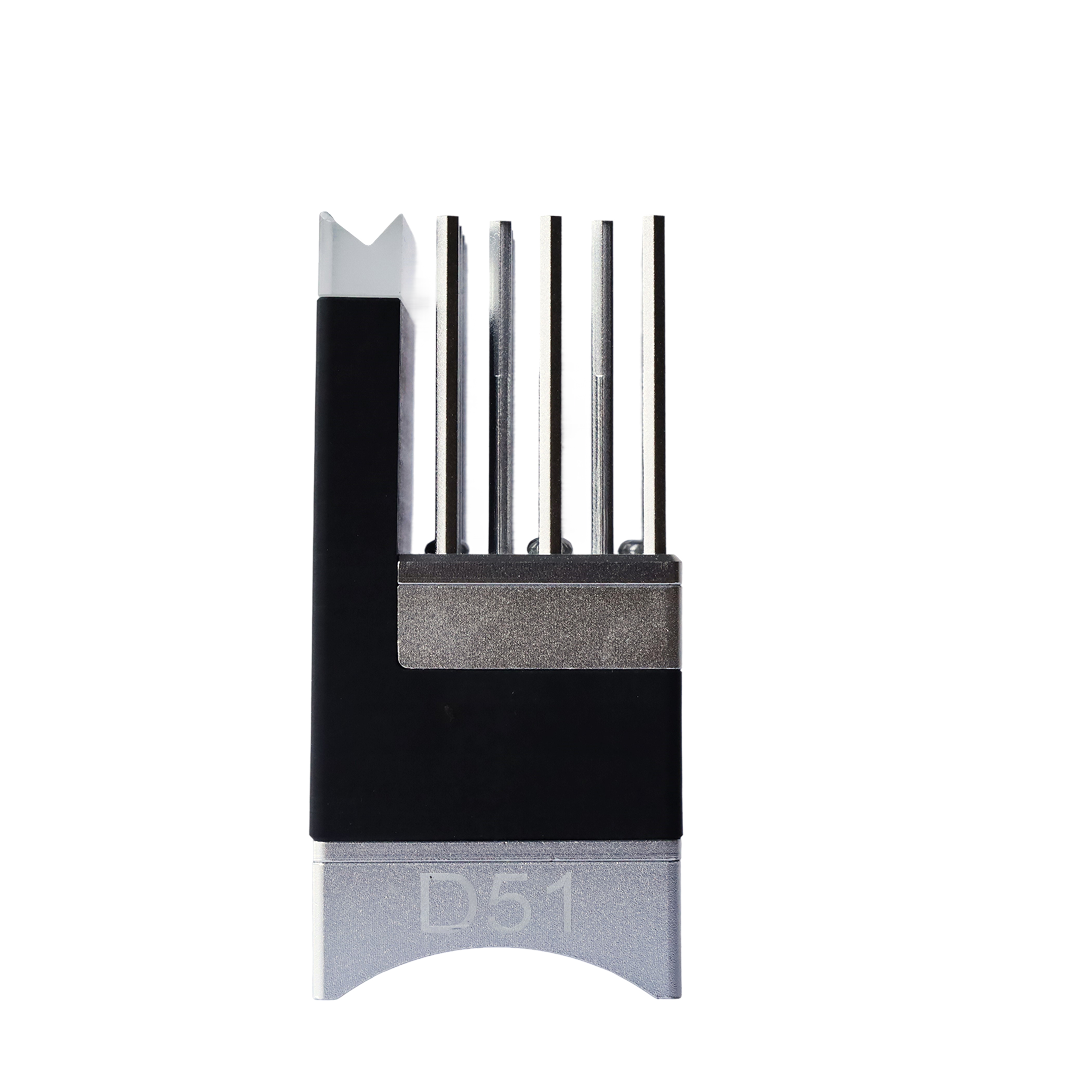

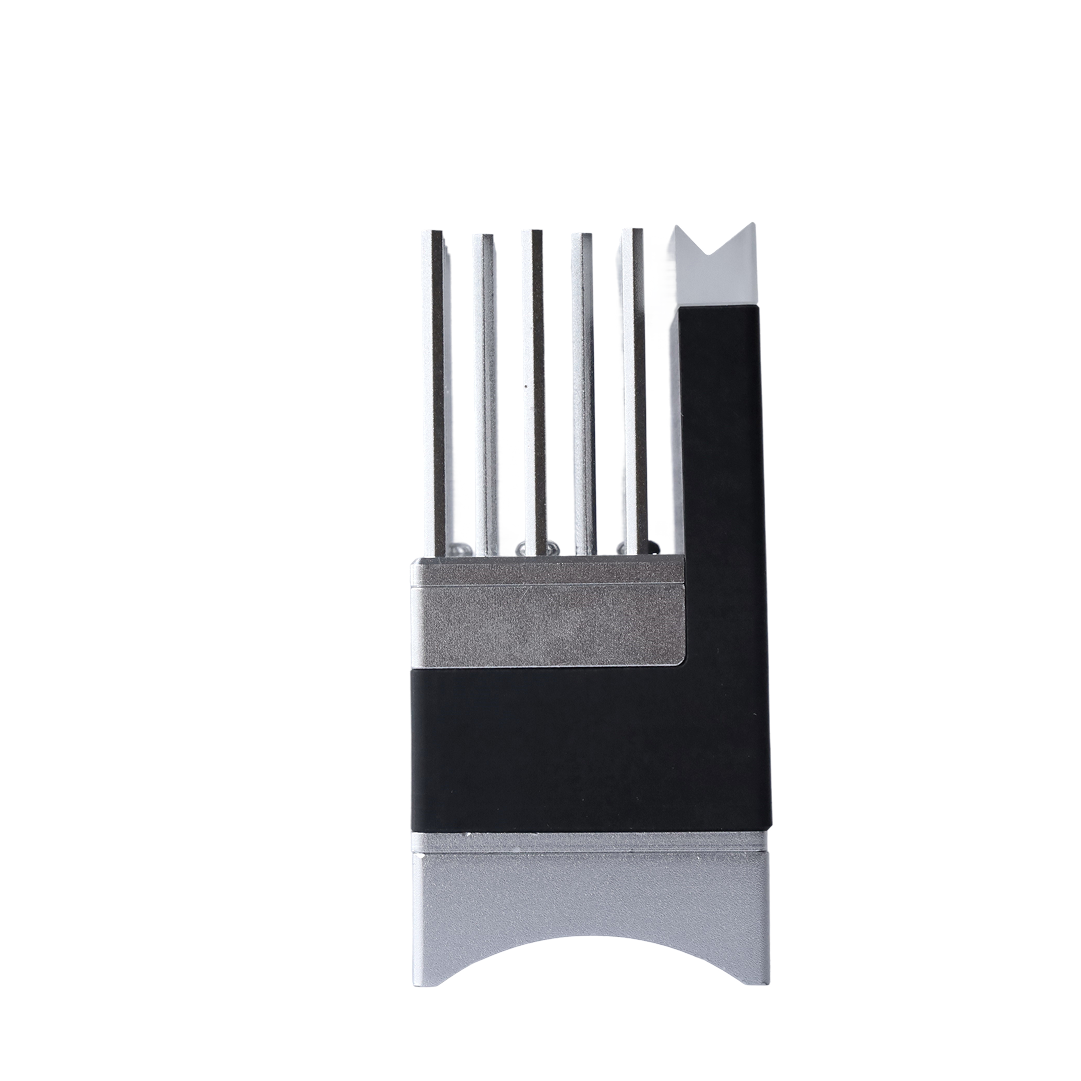

Keep your workplace safe with the SensEver® HSI, a battery-free device that alerts personnel to dangerous hot surfaces. Perfect for industrial environments, it attaches directly to pipes and surfaces, emitting a visible red blinking light when temperatures exceed a preset threshold. The self-powered design ensures maintenance-free operation, converting heat into energy. Ideal for environments prone to contact burns, the SensEver HSI enhances safety while supporting uninterrupted workflow.
Protect your staff and reduce downtime with this innovative, energy-harvesting solution.
KEY FEATURES
KEY FEATURES
Plug-and-Play Operation
- Compact and user-friendly design with a small 35 x 35 x 60 mm footprint
- Preconfigured to activate visual warning between 60°C and 140°C
- Quick installation on all standard industrial hot pipes and surfaces
Self-Powered and Cable-Free
- Generates power from heat using thermal energy harvesting
- Operates completely without batteries or wiring
- Improves safety in areas where cabling poses a risk or is impractical
Built for Industrial Safety
- Flashing red light alerts personnel when surface temperatures exceed safe limits
- Ideal for areas where audible alarms cannot be heard
- Certified for ATEX Zone 2 environments
Zero Maintenance Design
- No batteries to replace, no cables to inspect
- 24/7 operation throughout its +10-year lifespan
- Resistant to industrial cleaning and disinfection processes
Smart Monitoring with BLE (HSI-BLE model)
- Optional Bluetooth-enabled version transmits real-time temperature data
- Enables easy integration into IoT and smart maintenance systems
- Supports retrofitting without modifying existing infrastructure
USE CASE
USE CASE
Industrial Safety Monitoring
- Marks hazardous hot surfaces in production lines, plants, and refineries
- Reduces the risk of accidental burns in environments with exposed pipes
Food and Beverage Facilities
- Helps operators identify hot cleaning or sterilisation lines
- Withstands standard cleaning and disinfection procedures
Chemical and Pharmaceutical Plants
- Suitable for ATEX Zone 2 applications
- Provides a silent, always-on heat hazard indication in critical zones
Marine and Offshore Installations
- Ideal for compact, hard-to-reach areas with no power access
- No wiring or batteries simplifies safety compliance
Smart Maintenance and IoT Integration (HSI-BLE model)
- Retrofit existing facilities with real-time temperature monitoring
- Use Bluetooth data for predictive maintenance and process tracking
SPECIFICATIONS
SPECIFICATIONS
Dimensions: 35 mm x 35 mm x 60 mm

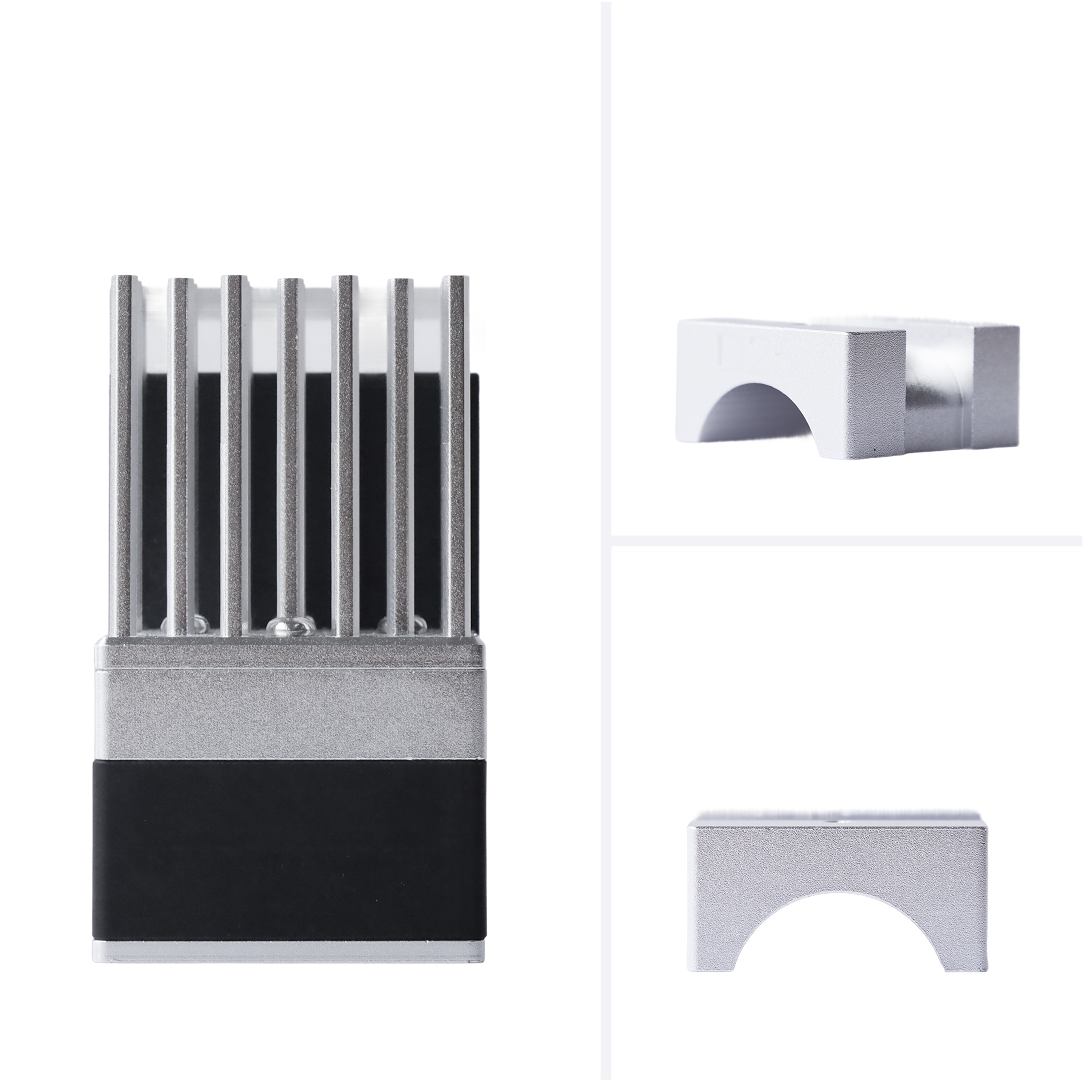

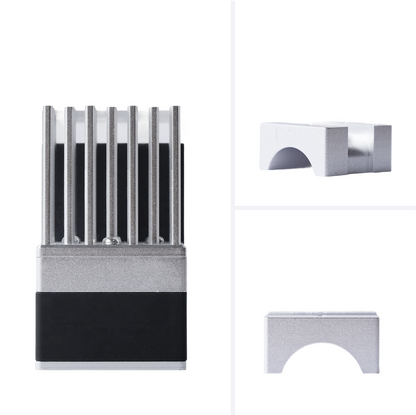

Installation: Direct mount on pipe or flat surface (adapter optional)
Supported Pipe Diameter: From Ø8 mm and above
Material: Aluminium and PTFE
Power Supply: Self-powered via thermal energy harvesting
Alarm Threshold: Adjustable between 60°C and 140°C
Alarm Type: Flashing red light at approximately 1 Hz
Operating Temperature: -20°C to +145°C
Max Surface Temperature: 145°C (measured at 25°C ambient)

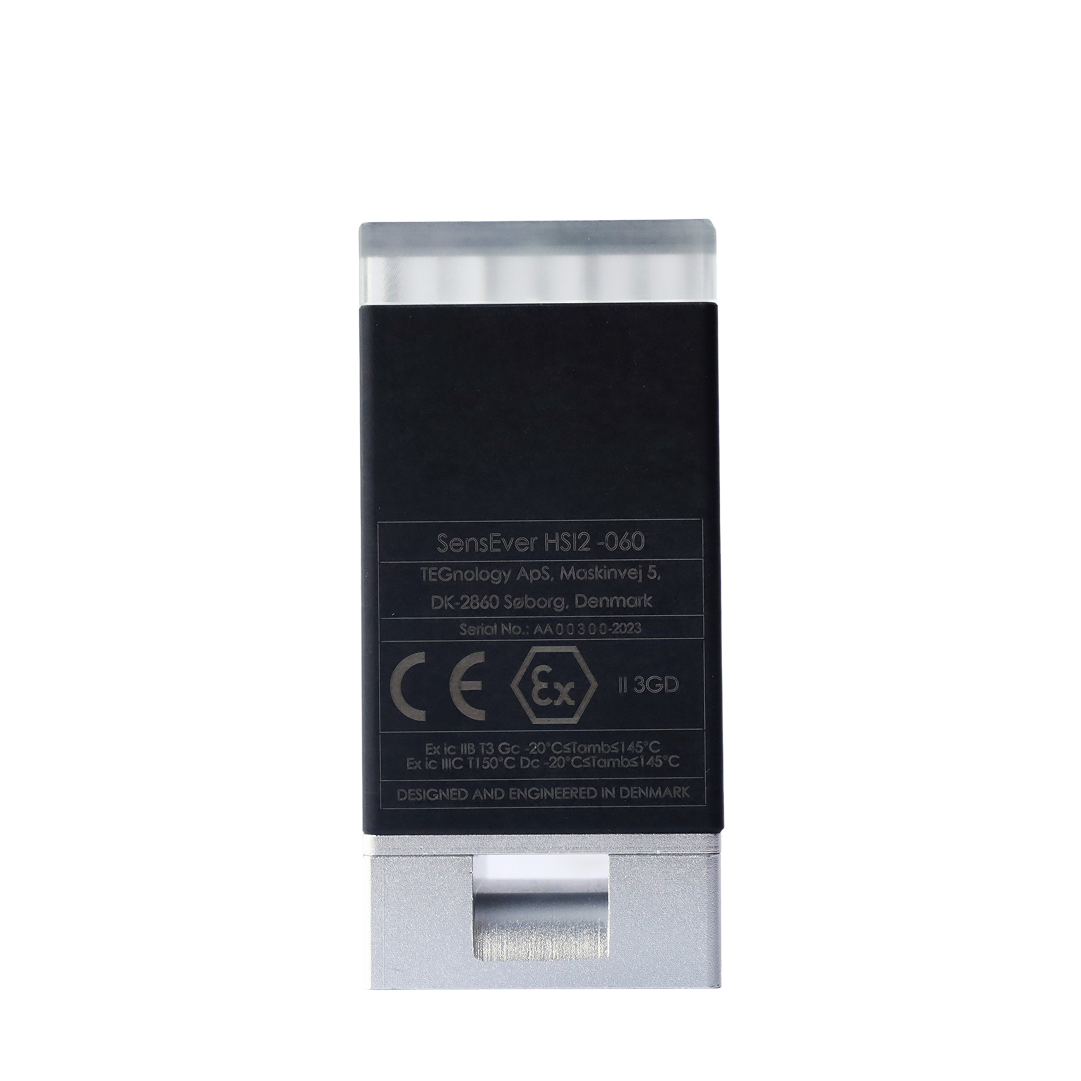

Certification: ATEX Zone 2 (explosive atmosphere ready)
Maintenance: None required
Connectivity (BLE model): Bluetooth Low Energy (for data transmission)
