Truck Blind Spot Mirror Screen Camera

Truck Blind Spot Mirror Screen Camera

$1,000.00 AUD
$1,000.00 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.

DESCRIPTION

Upgrade your truck’s visibility and safety with the Mingshang MS-719A, a cutting-edge digital mirror camera system engineered for heavy-duty and commercial vehicles. Designed to replace traditional side mirrors, this system combines high-resolution cameras and a 12.3-inch panoramic HD display to give drivers an expansive, crystal-clear view of their surroundings.

The MS-719A’s advanced optics and ultra-bright, anti-glare screen deliver sharp visuals even in harsh lighting or low-visibility conditions, giving drivers total confidence in all environments: day, night, rain, or shine. Its wide-angle coverage eliminates blind spots, helping drivers safely change lanes, reverse, and maneuver in tight spaces.

Integrated dual-channel 1080p DVR recording provides continuous video capture for both left and right views, offering valuable evidence and added security during fleet operations. Built for durability and reliability, the MS-719A is the ideal upgrade for trucks, buses, RVs, and industrial vehicles where visibility and safety are essential.

KEY FEATURES

12.3-Inch Panoramic HD Display: A massive, high-resolution (1920x720) IPS screen provides a vastly wider and clearer field of view than conventional mirrors.

Dual-Channel 1080p DVR: Simultaneously records high-definition video from two camera inputs to an SD card (up to 256GB), providing an invaluable record for incident analysis.

Superior Low-Light & Poor Weather Performance: Unlike traditional mirrors, the digital system cuts through glare, rain, and darkness to provide a consistently bright and clear image.

IP69K Waterproof Cameras: The cameras are built to the highest standard, ensuring they withstand high-pressure washing and the most extreme weather conditions.

Wide Voltage Input (8V-36V): Designed to work natively with the electrical systems of all vehicle types, from light commercial vans to heavy-duty 24V trucks.

Automatic Brightness Control: The 1000-nit display automatically adjusts its brightness for optimal visibility in direct sunlight or at night, reducing eye strain.

Automotive-Grade Reliability: Built with AEC-Q100 certified components, ensuring extreme durability and a wide operating temperature range (-40°C to +85°C).

USE CASE

This system is designed as a full replacement for traditional mirrors on large vehicles to enhance operational safety and efficiency.

  • Total Blind Spot Elimination: Provides a complete view down the side of the vehicle, revealing cars, cyclists, or obstacles that are invisible in standard mirrors.
  • All-Weather Highway Driving: Delivers a perfect, spray-free view during heavy rain or fog when traditional mirrors would be obscured.
  • Nighttime Operations: Turns night into day with exceptional low-light camera performance, making lane changes and reversing manoeuvres significantly safer.
  • Tight Urban Navigation: Allows drivers to confidently navigate narrow streets and complex intersections with a clear view of kerbs and surrounding traffic.
  • Incident Recording: The integrated DVR acts as a "black box," automatically recording events for driver exoneration and insurance purposes.

SPECIFICATIONS

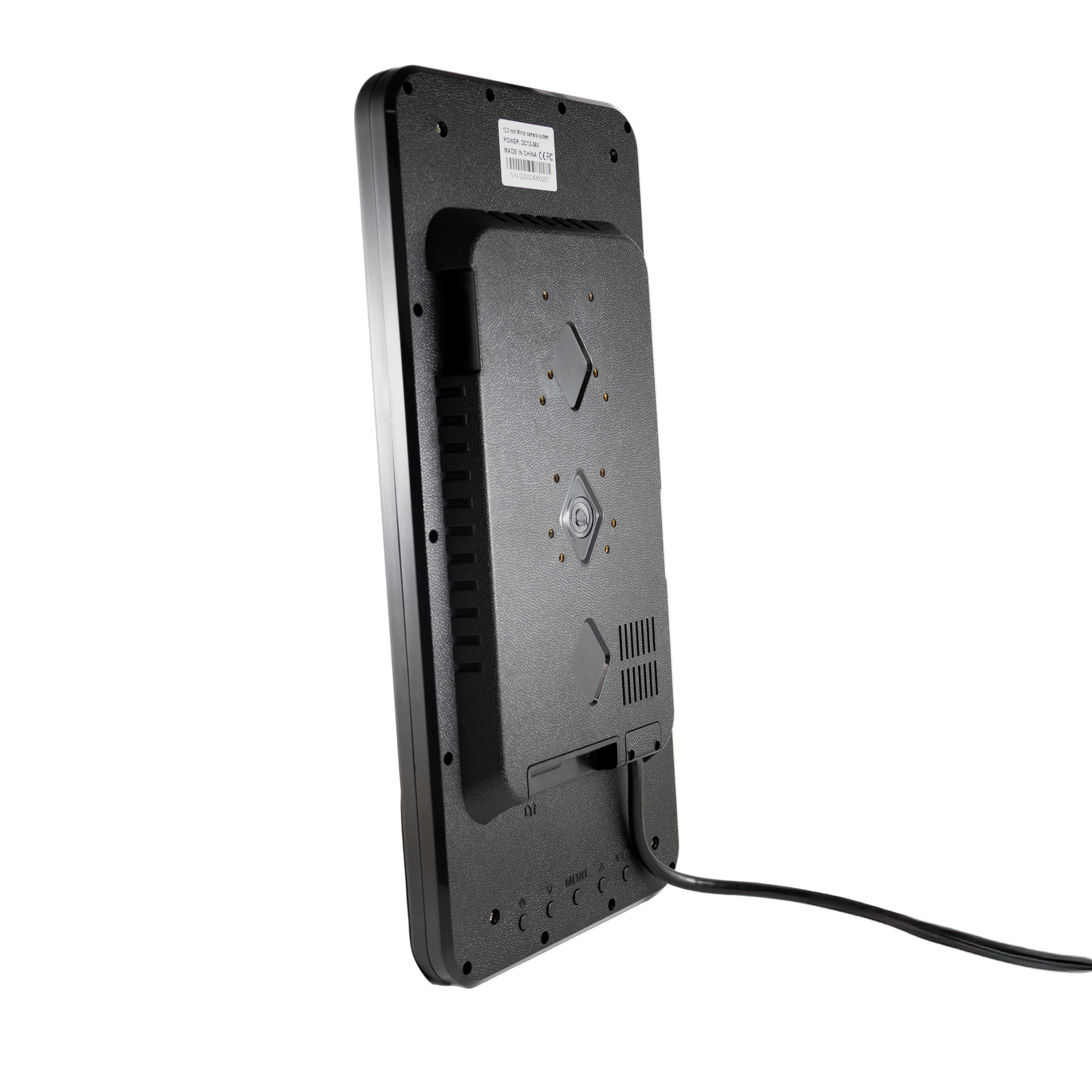

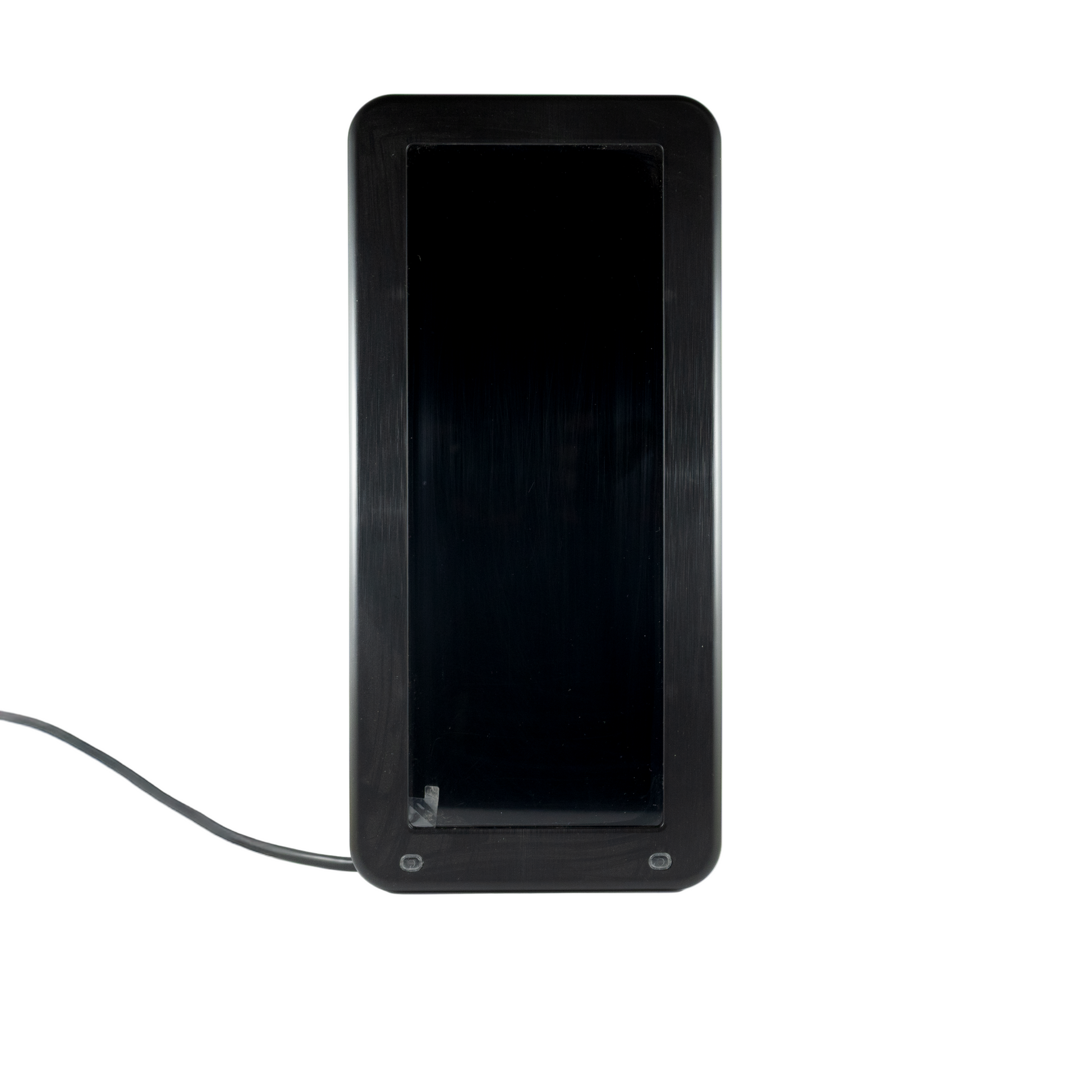

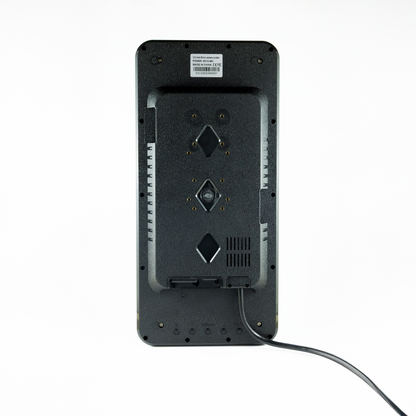

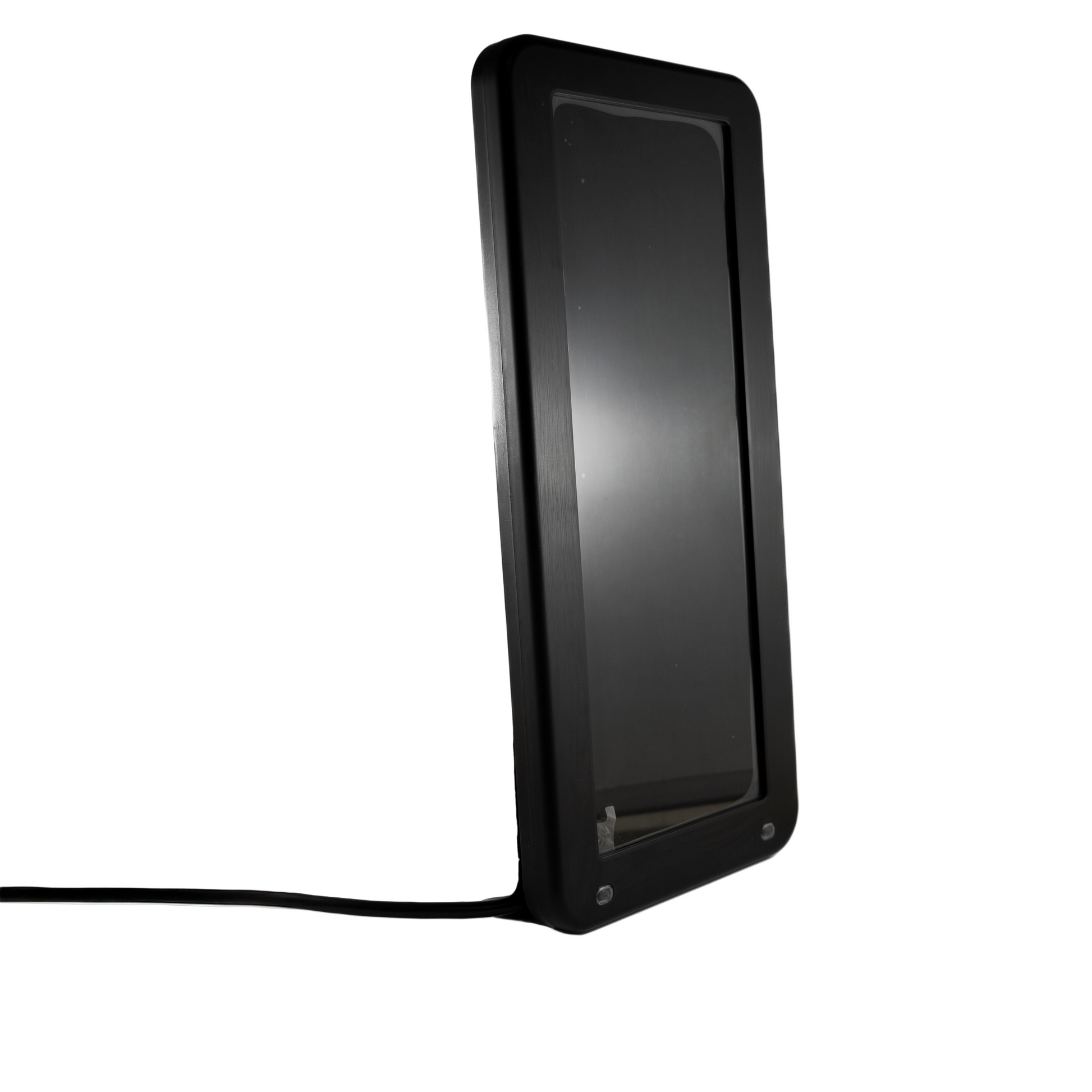

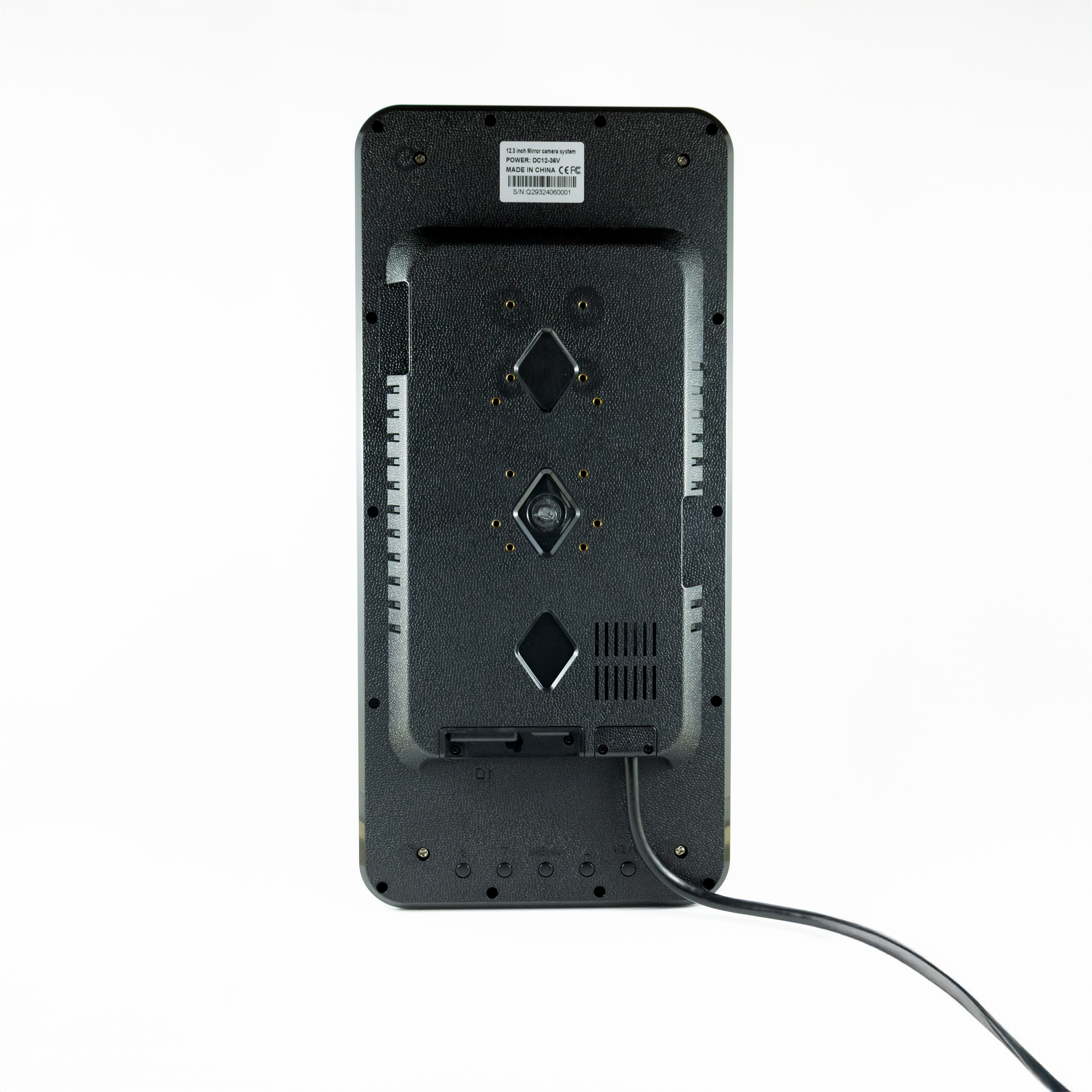

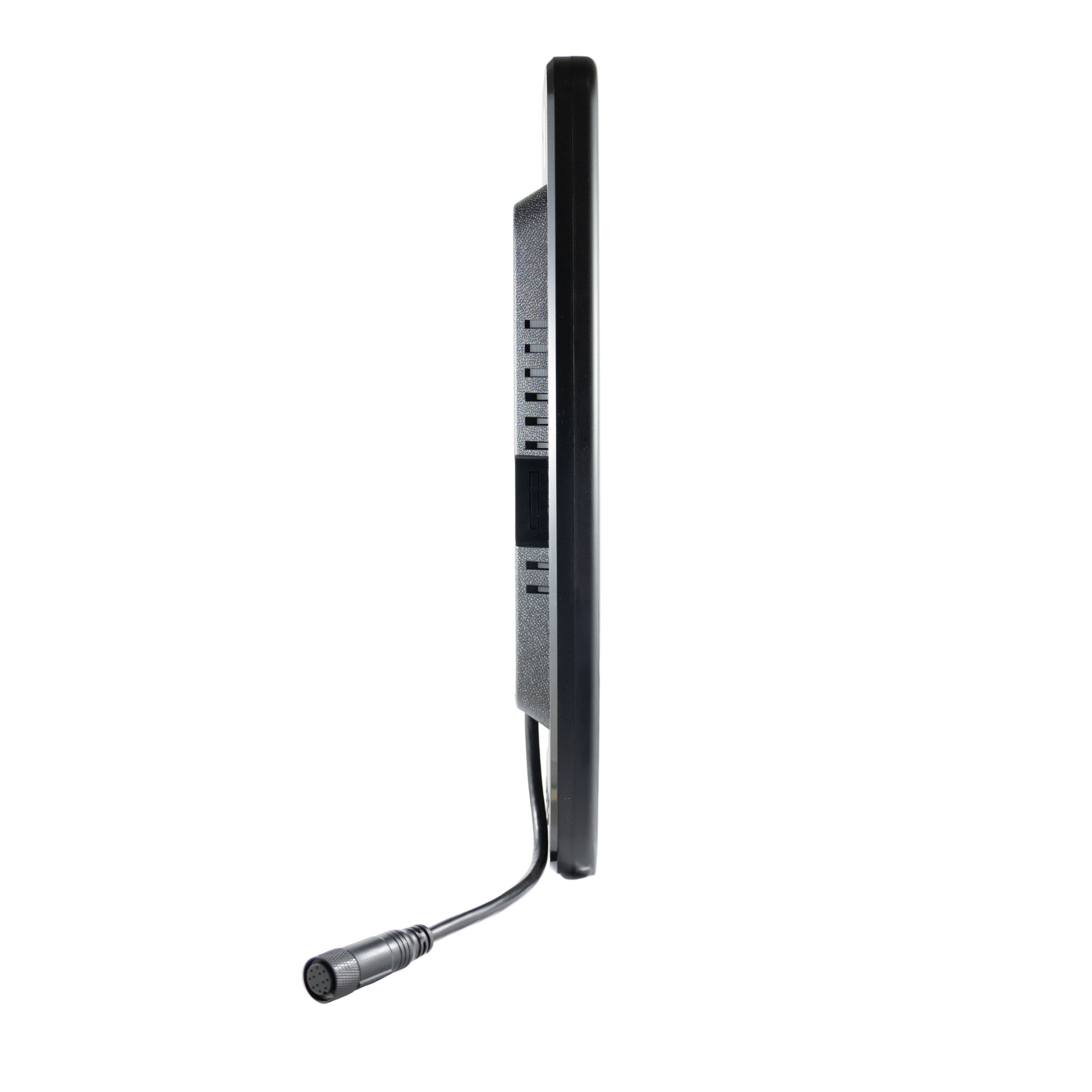

Monitor (MS-719A)

  • Screen: 12.3" IPS LCD
  • Resolution: 1920 x 720
  • Brightness: 1000 cd/m² (Auto-adjusting)
  • Contrast: 1000:1
  • Video Inputs: 2 Channels (Supports 1080p/720p AHD & CVBS)
  • Recording: Dual Channel 1080p @ 30fps
  • Storage: MicroSD Card, up to 256GB
  • Power Input: DC 8V - 36V
  • Operating Temperature: -40°C to +85°C
  • Shockproof Rating: ISO 16750-3 (6.3G Max)

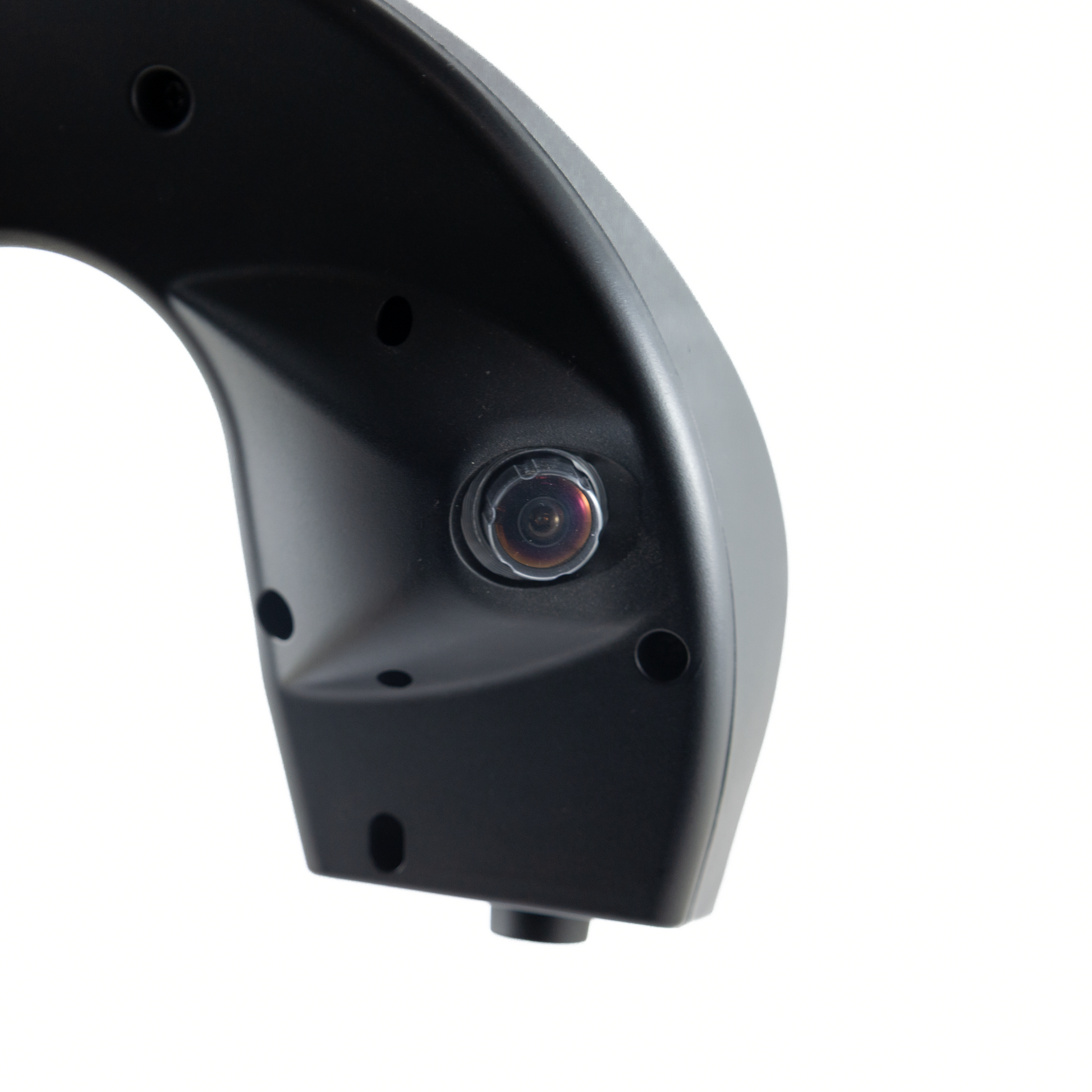

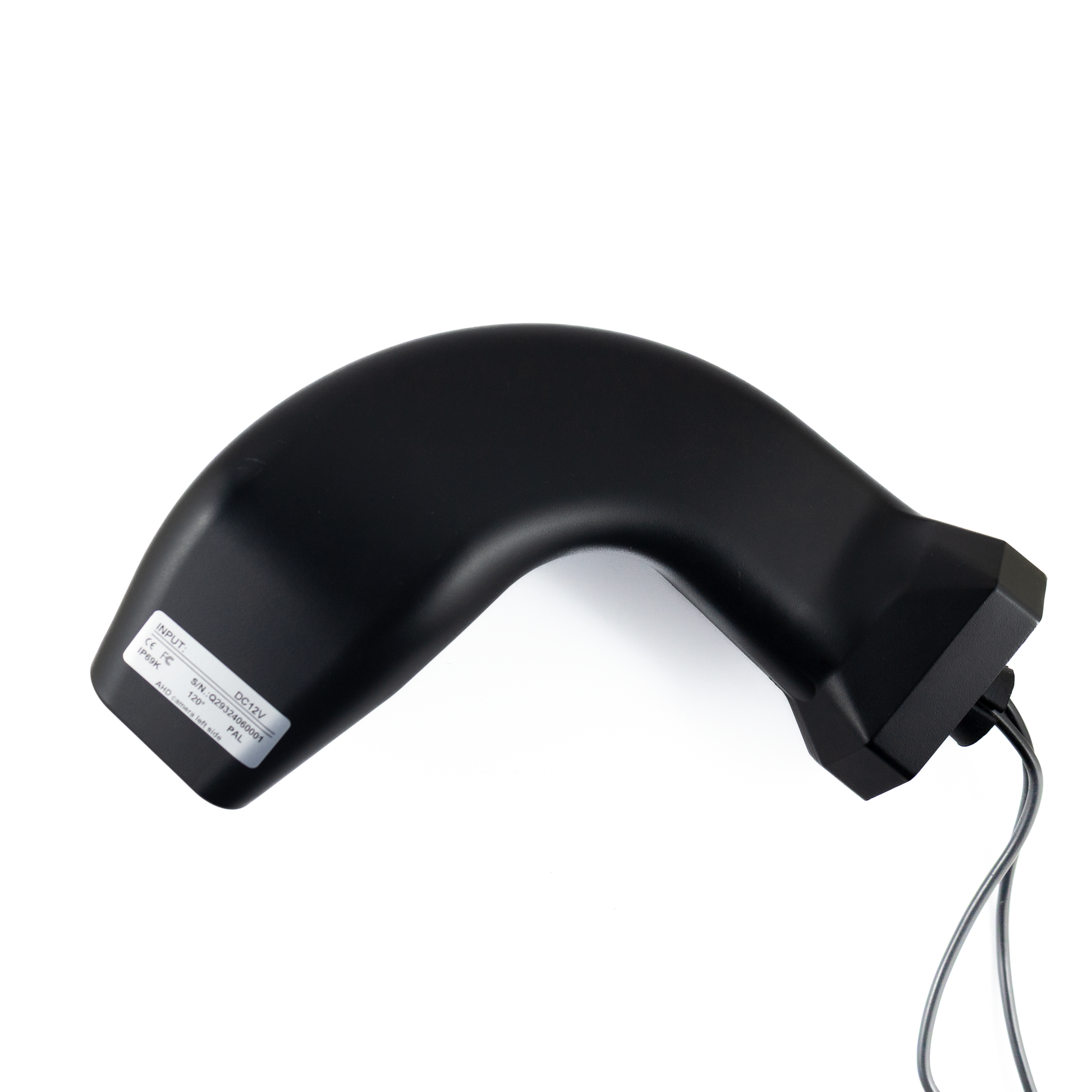

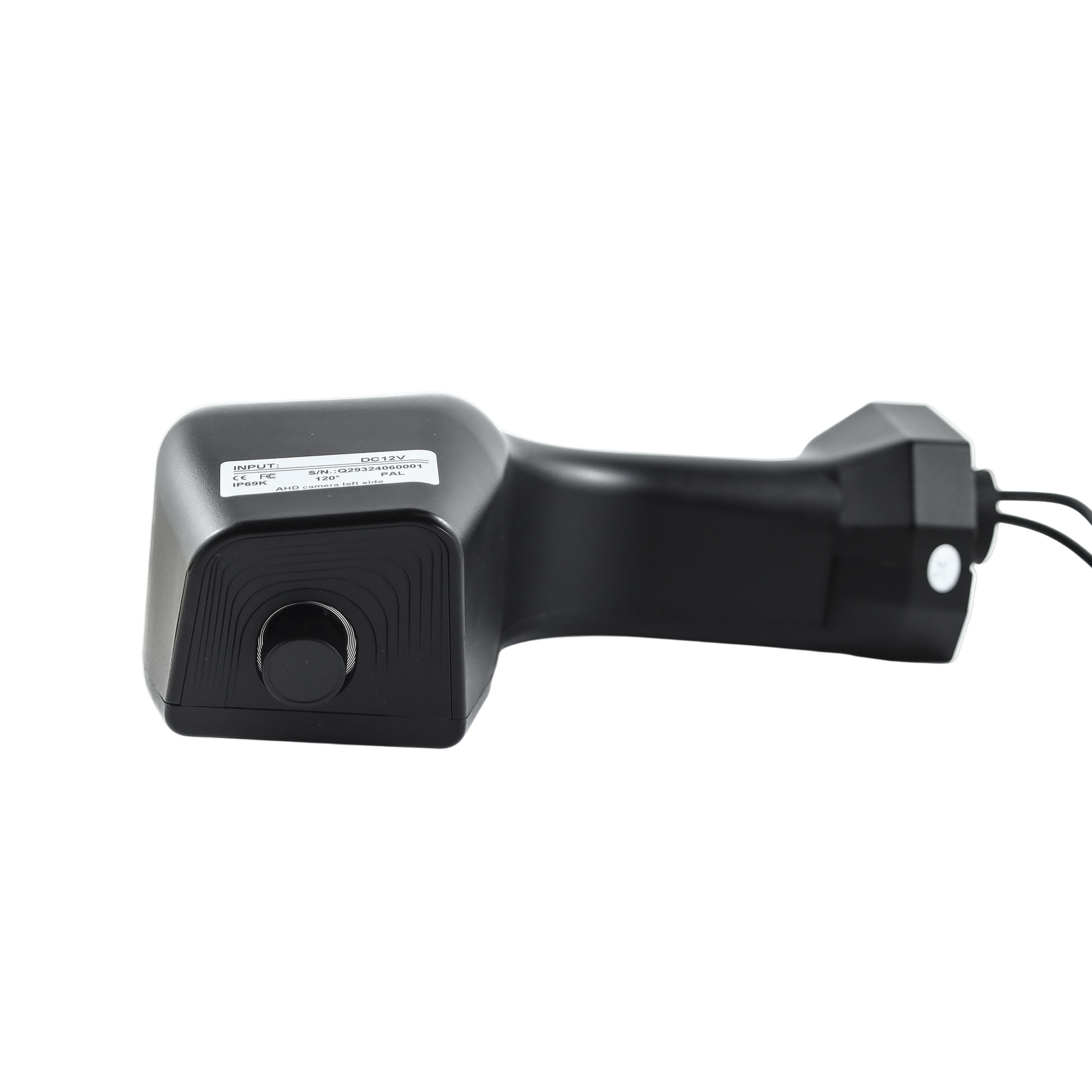

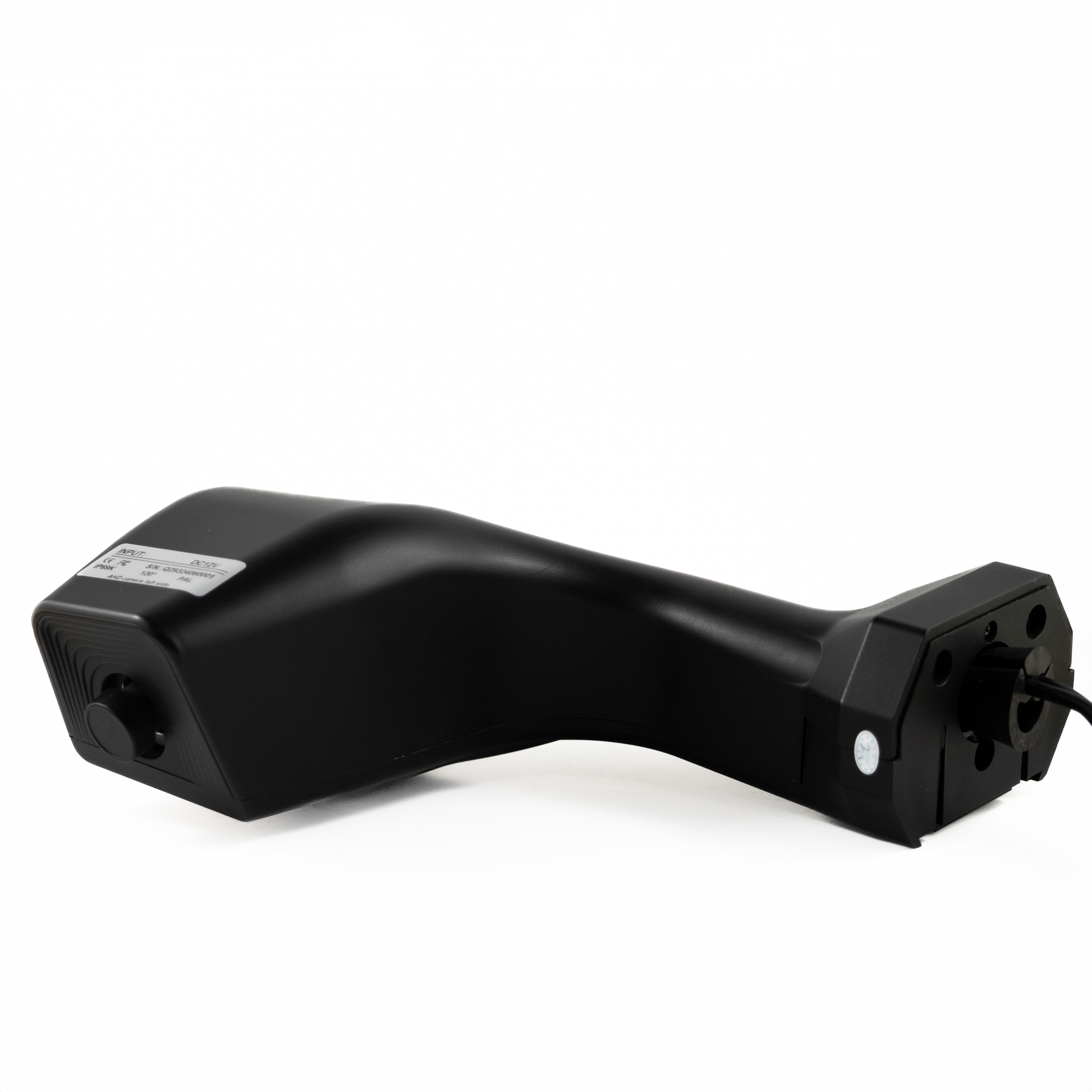

Camera

  • Waterproof Rating: IP69K
  • Night Vision Distance: Approx. 10 meters
  • Power Input: 12V DC (Supplied by monitor)

ADDITIONAL INFO

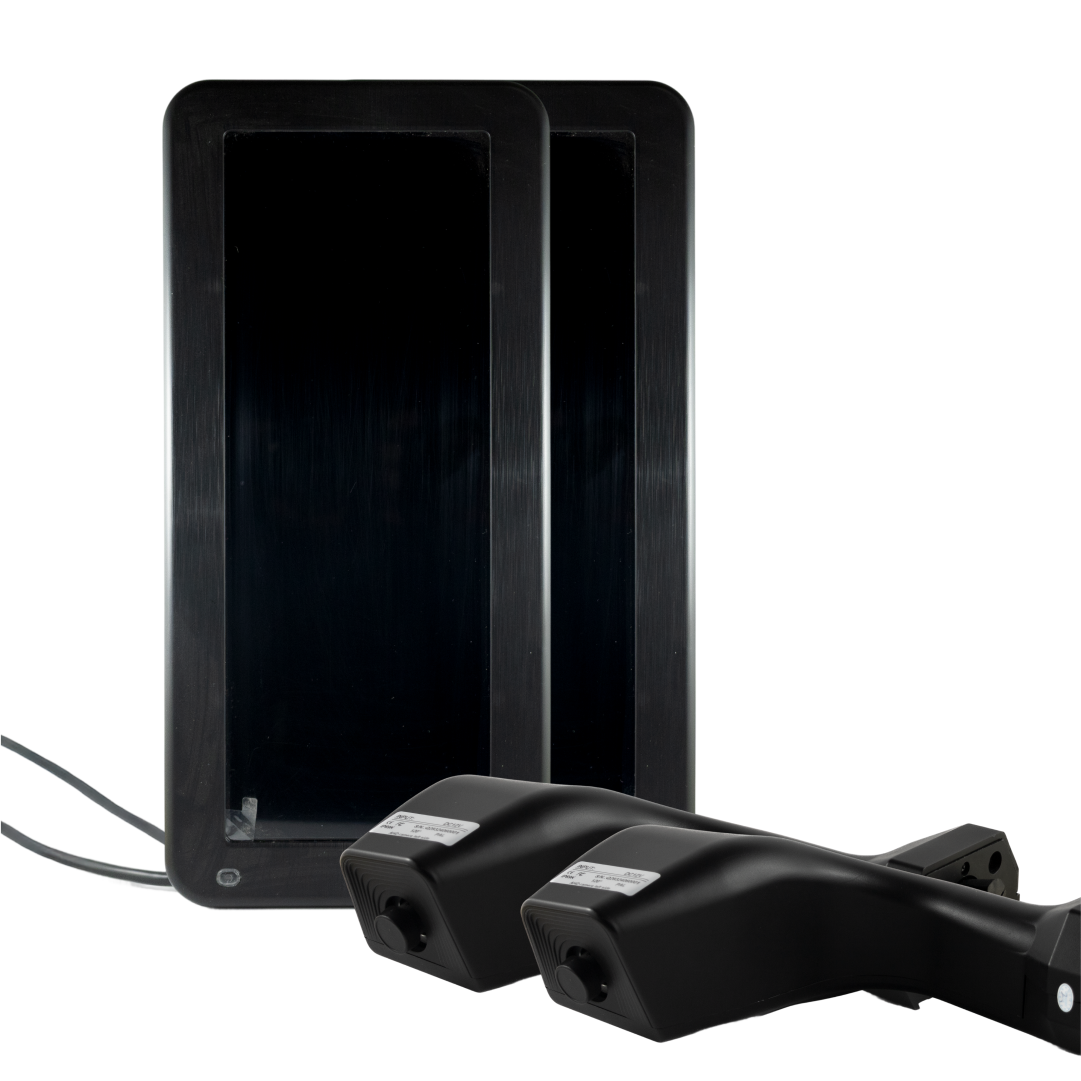

What's in the Box: The system includes 12.3-inch monitor, two side-mount cameras.

Professional Installation Recommended: Due to the nature of replacing OEM mirrors, professional installation is highly recommended to ensure secure mounting and correct wiring.

Compliance: This technology is designed to meet or exceed legal requirements for vehicle mirrors in many regions, enhancing fleet safety and compliance standards.
